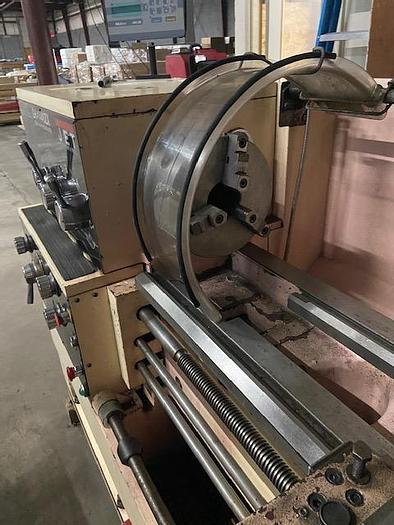

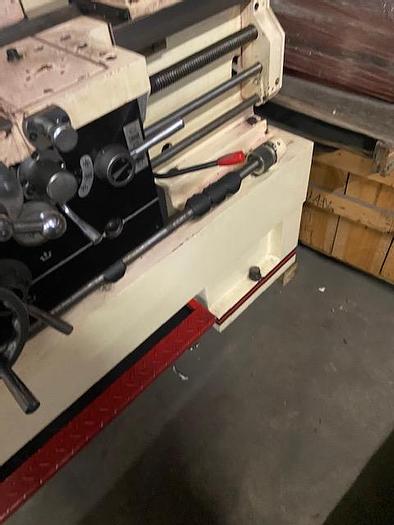

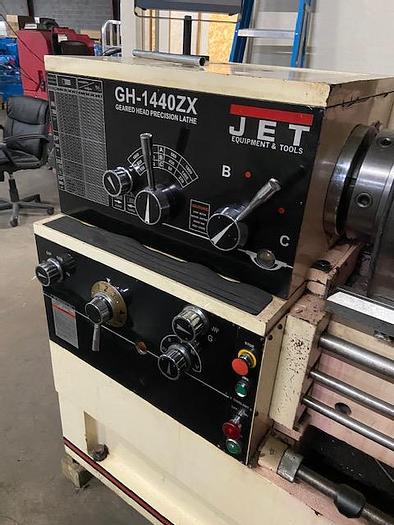

2010 JET GH 1440 ZX GH 1440 ZX

JET Engine Lathe Model GH-1440ZX, 3-1/8" Spindle Bore Geared Head Lathe

SN 010611ZX345

New mid 2000’s

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears.

FEATURES:

3-1/8" bore spindle is supported by two tapered and one ball bearings

Chrome molybdenum headstock gears are hardened, ground and shaved

Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required

Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces

T-slotted compound slide featuring four-way tool post

One piece cast iron base absorbs vibration allowing heavier cuts

High quality ANSI Class 50 wear resistant cast iron bed ways are

Removable gap allows large diameter work

Five position automatic carriage stop increases productivity

Meehanite Castings

Siemens Electrics

STANDARD EQUIPMENT

10" 3-jaw scroll chuck with top reversing jaws

12" face plate

14” 4 jaw chuck

Face plate

Follow rest

Large capacity steady rest with ball bearing tips

Fully integrated coolant system

Full length splash guard and coolant return

Large easy to use foot brake

Articulating LED work lamp

Chuck Key Holder

Fitted top mats to hold tooling

Centrally located controls with jog button

Threading dial

Mounting pads and levelers

2 axis Readouts

E-Stop on Carriage for added safety

Specifications

Size

14 x 40

Swing Over Bed (In.)

14

Swing Over Cross Slide (In.)

7-5/8

Swing Through Gap (In.)

23-5/8

Length of Gap (In.)

12

Distance Between Centers (In.)

40

Spindle Bore (In.)

3-1/8

Spindle Mount

D1-8

Number of Spindle Speeds

12

Range of Spindle Speeds (RPM)

42 - 1,800

Spindle Taper with Sleeve

MT-7 (MT-5)

Number of Longitudinal and Cross Feed Rates

46/31

Range of Longitudinal Feeds (IPR)

.0015 - .0900

Range of Cross Feeds (IPR)

.0006 - .0360

Number of Inch Threads

61

Range of Inch Threads (TPI)

1-5/8 - 72

Number of Metric Threads

24

Range of Metric Threads

.05 - 20

Max Tool Size (In.)

1 x 1

Compound Slide Travel (In.)

5-1/8

Cross Slide Travel (In.)

9

Carriage Travel (In.)

36-9/16

Tailstock Spindle Travel (In.)

6

Taper in Tailstock Spindle

MT-4

Follow Rest Capacity (In.)

1/2 - 3-1/2

Steady Rest Capacity (In.)

3/8 - 7

Width of Bed (In.)

13-1/8

Motor (HP)

7-1/2 HP, 230/460, 3 Ph

Prewired (V.)

230V, **SURCHARGE APPLIES FOR 460V RE-WIRE

Overall Dimensions (L x W x H) (In.)

96 x 44 x 66

Drive

Geared Head

Style (Type)

Engine - Large Spindle Bore

Weight (Lbs.)

5,187

Width

45.0000

Weight

5401.0000

Height

66.0000

Length

97.0000

Complete with 2 axis readouts
