1979 REIS Spotting Press 100 Ton TUS-90/07

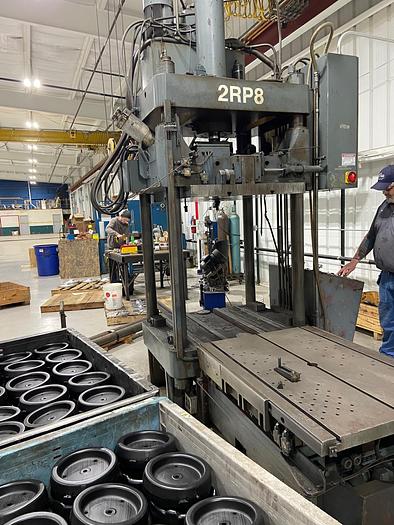

REIS 4 POST HYDRAULIC SPOTTING PRESS WITH SHUTTLE TABLE

TILT DOWN RAM, TILT UP SHUTTLE BOLSTER (LEFT TILT & RIGHT TILT)

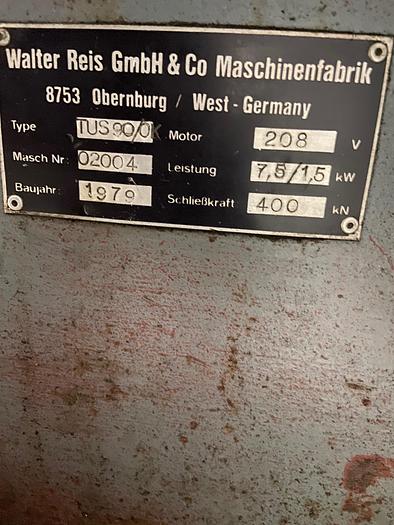

MODEL TUS 90/07

YEAR 1979

FLOOR STANDING

100 TON CAPACITY

40.75" STROKE (1250 mm)

44.75" DAYLIGHT

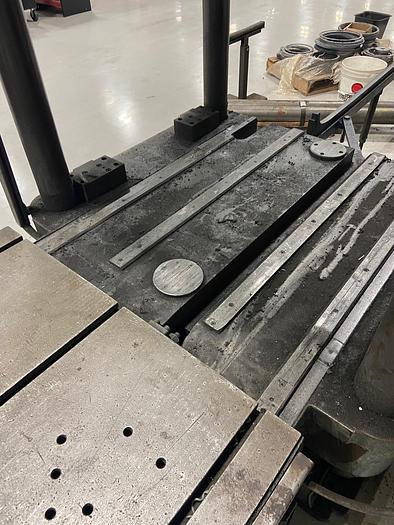

35" LR X 50.40" FB BED TABLE SURFACE

39.37" LR X 47.25" FB RAM SURFACE

45-1/2" LR OPENING BETWEEN POST (Shuttle Table Pass Through Opening)

28" FB OPENING BETWEEN POST (Side Opening)

25-1/2" FLOOR TO TOP BED TABLE

15,432 LBS MAX. ESTIMATED TABLE WEIGHT CAPACITY

7,716 LBS MAX. ESTIMATED RAM WEIGHT CAPACITY

EQUIPPED WITH

OPERATOR CONTROL CONSOLE

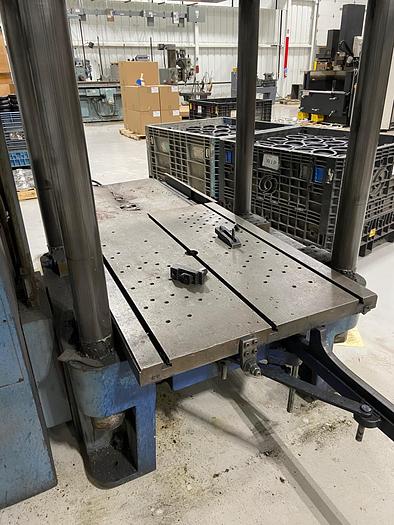

SHUTTLE TABLE

EJECTOR IN TABLE

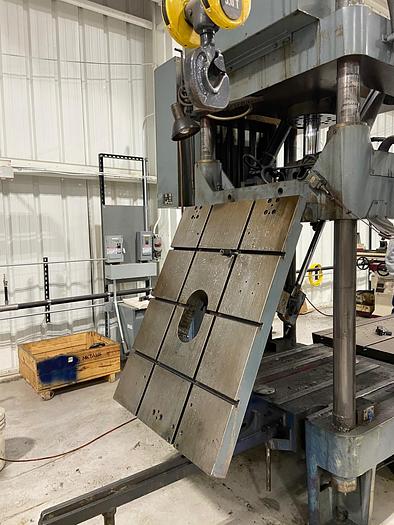

TILT UP BOLSTER (L-R & R-L, CLICK ON VIDEO LINK BELOW)

TILT DOWN RAM

T-SLOTTED RAM & TABLE

LUBE PUMP SYSTEM FOR EACH GUIDE POST

FAST DOWN & RETURN SPEED CONTROLS

SLOW DOWN & RETURN SPEED CONTROLS

APPROX. DIMENSIONS

APPROX. 84" W X 100" L X 165" H

ESTIMATED WEIGHT 25,000 LBS
