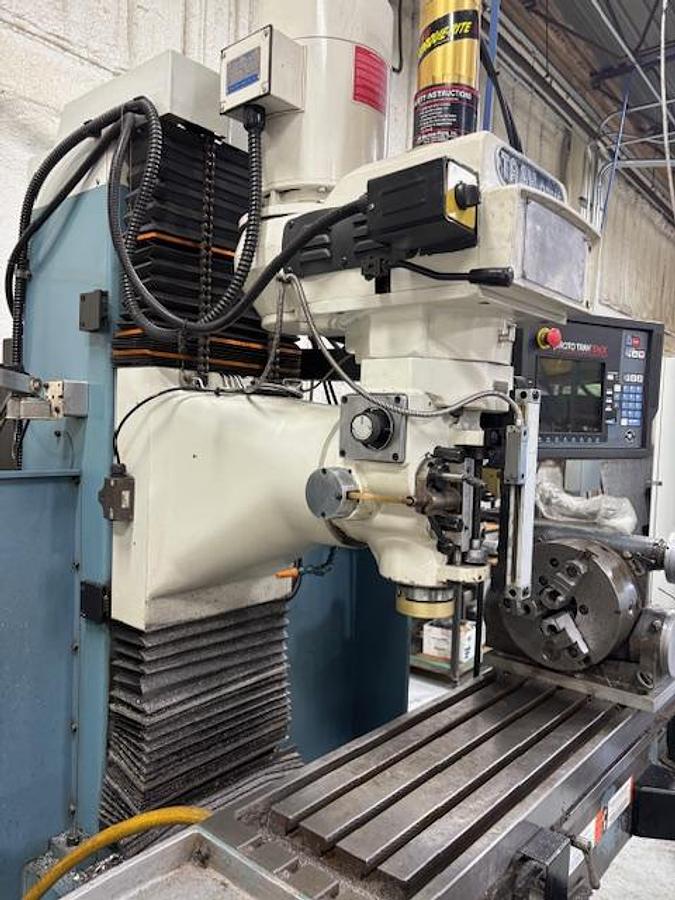

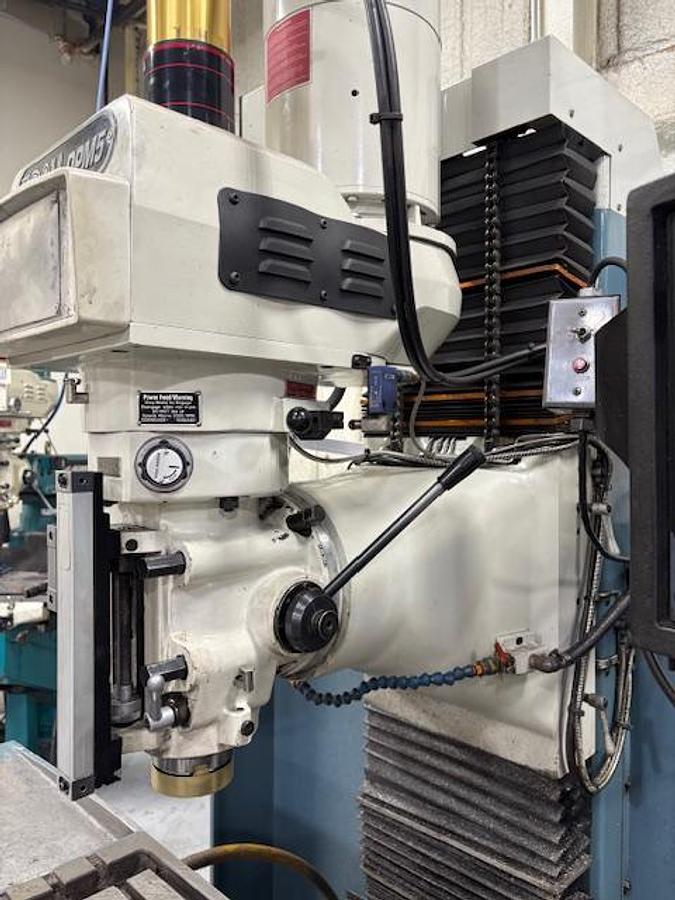

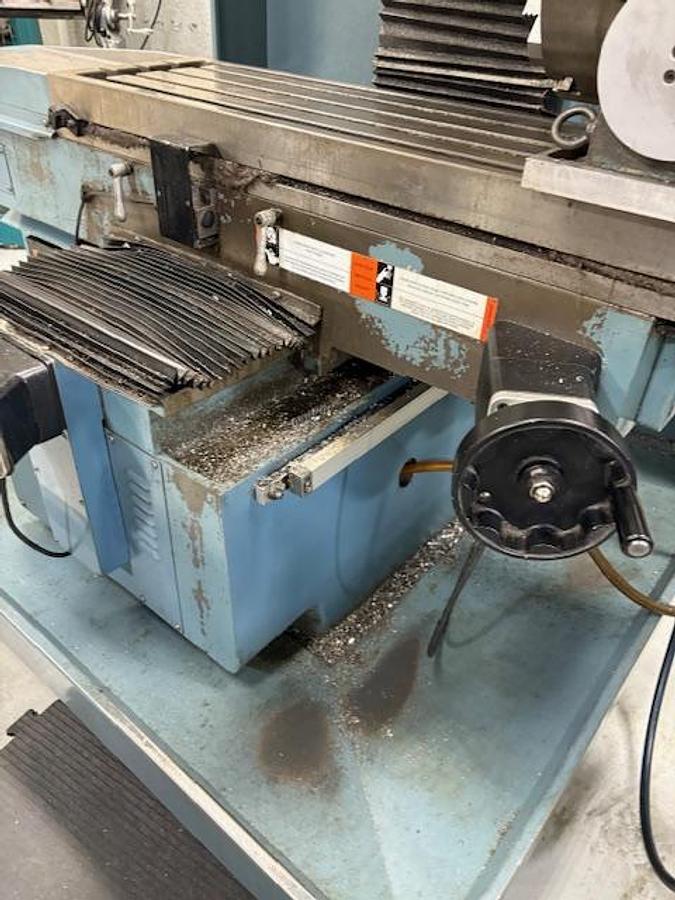

Southwestern Ind. Trak DPM 5 3 axis CNC Bed Mill 12" x 50" Table 2015 SMX

Specifications

Manufacturer: Southwestern Industries

Model: Proto Trak DPM5 CNC Vertical Bed Mill

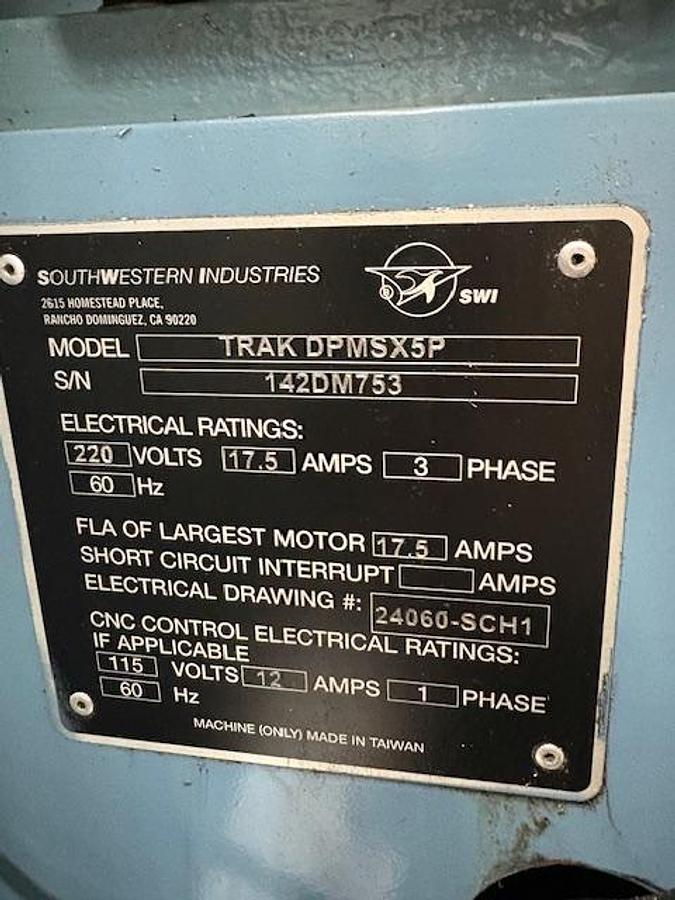

Serial # 142DM753

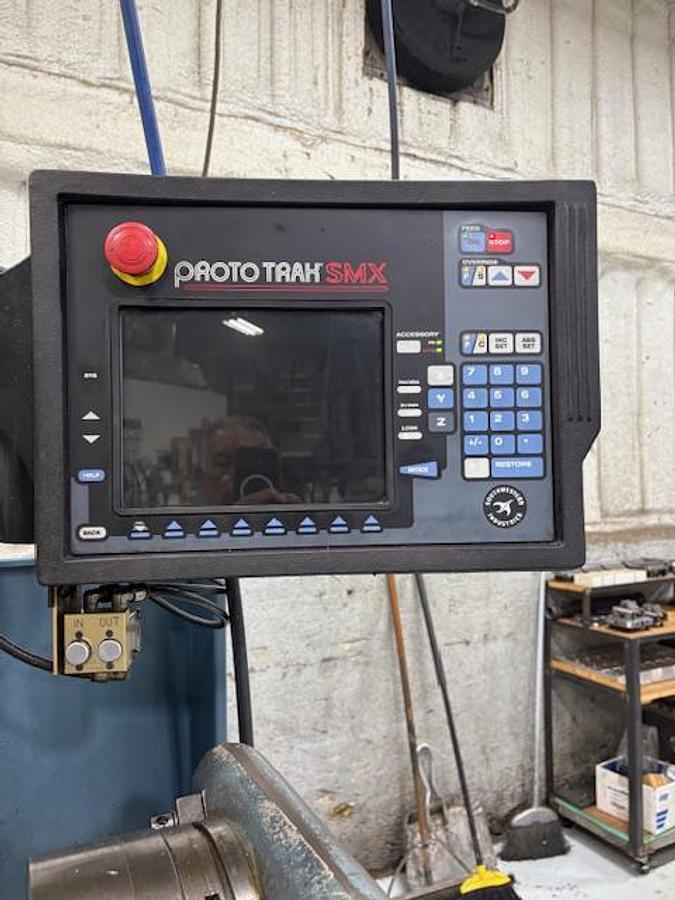

Control SMX

Machine Year: 2015

SPECIFICATIONS

Table size – 50″ x 12″

T-slots (number x width x pitch) – 3 x 16mm x 63.5mm

Travel (X, Y, Z axis) – 40″ x 20″ x 24″

Quill diameter – 4.13″

Spindle taper – 40

Spindle speed range RPM – 160-4000

Spindle center to column face – 20.5″

Spindle motor power – 5 HP

Power requirement, control – 110V, 1P, 15A

Power requirement, machine – 220V, 3P, 60HZ Current,

Full Load Amps – 17.5 FLA

Maximum weight of workpiece – 1760 lbs.

Height of table from bottom of bed – 41″

Maximum spindle nose to table – 24″

Minimum height – 87″ Maximum height – 100″

Width of machine including table – 94″

Length with electric box door closed – 80″

Overall width including full table travel – 136″

Overall length with electrical door open – 105″

Footprint – 24″ x 48.4″

Way surface – dovetail X axis; square ways Y and Z axis

Weight (approximate) net – 4400 lbs.

Weight (approximate) shipping – 4700 lbs.

Drill max capacity – 1″ dia.

Tapping max capacity – 5/8″

Milling max capacity – 5 inch @3″/min

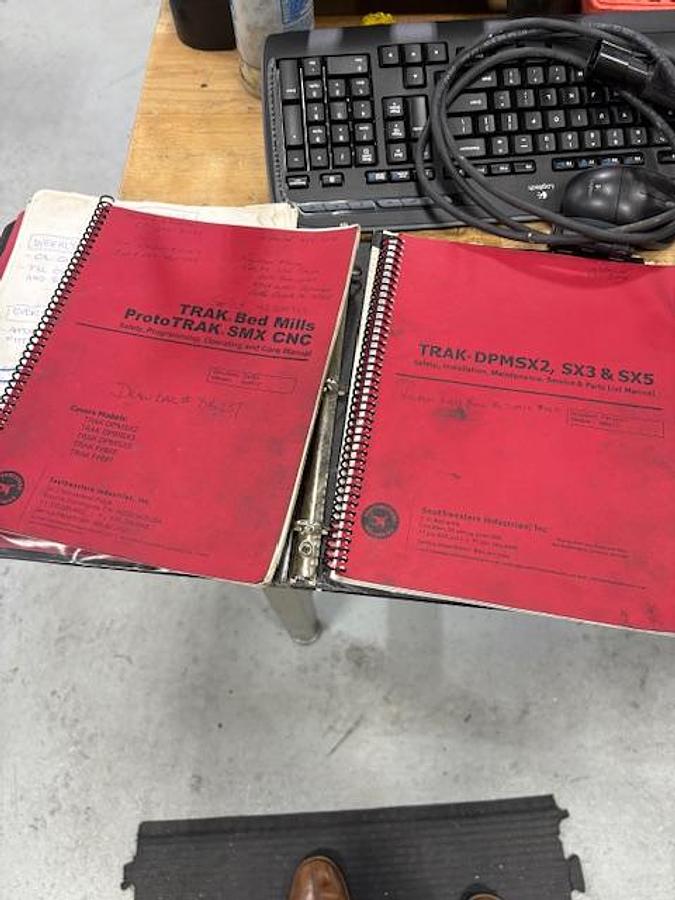

ONE OWNER  all manuals & splash guards

NO Rotary table
