Moore # 3 Jig grinder

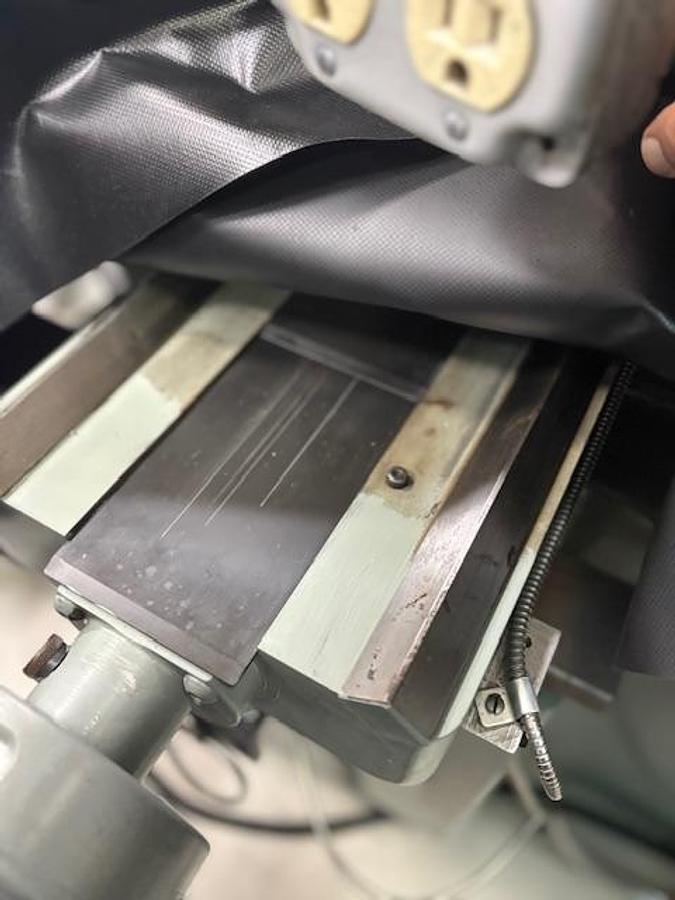

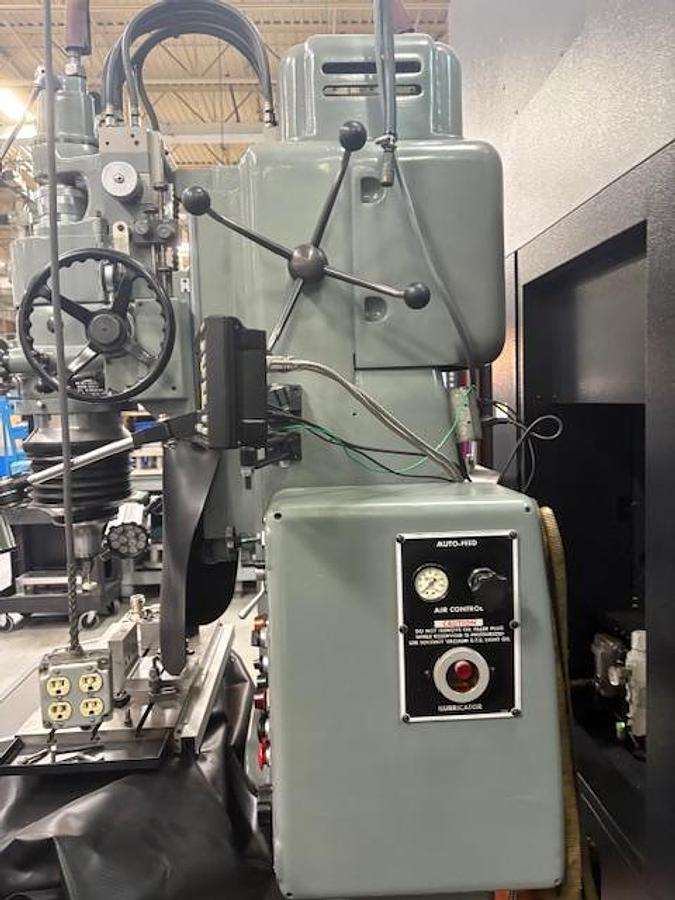

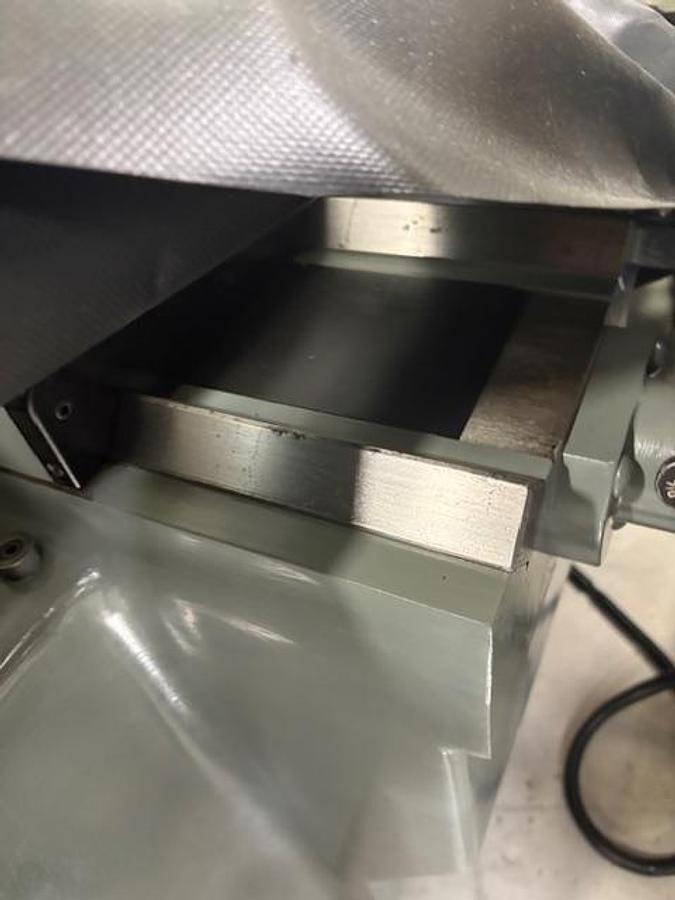

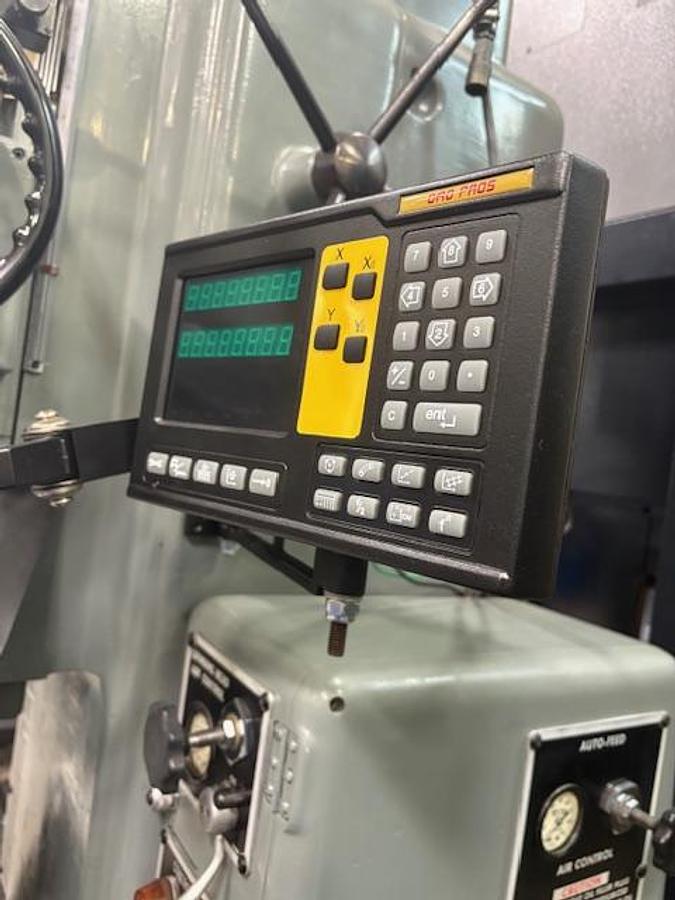

The Moore #3 jig grinder is a reliable piece of machinery favored in precision work. This used model features an 11" x 24" table with travel capabilities of 11" in cross and 18" in longitudinal directions. The distance from the table to the wheel collet can be adjusted between 2" and 18". With spindle-to-column distances typically measuring 10" or 13.5", this machine allows for adequate space and flexibility. This jig grinder operates a spindle with infinitely variable speeds ranging from 40 to 250 RPM and spindle feeds adjustable between 4 and 240 SPM, ensuring adaptability for different grinding needs. The Moore #3 often includes a high-speed spindle of either 40,000 RPM or 60,000 RPM and is accompanied by a Newall C-70, a 2-axis digital readout for precision measurements. The equipment weighs approximately 3,800 lbs and generally occupies floor dimensions of about 80" x 65" x 102". It remains in excellent, like-new condition with new readout installations, offering high accuracy and performance for industrial applications.
