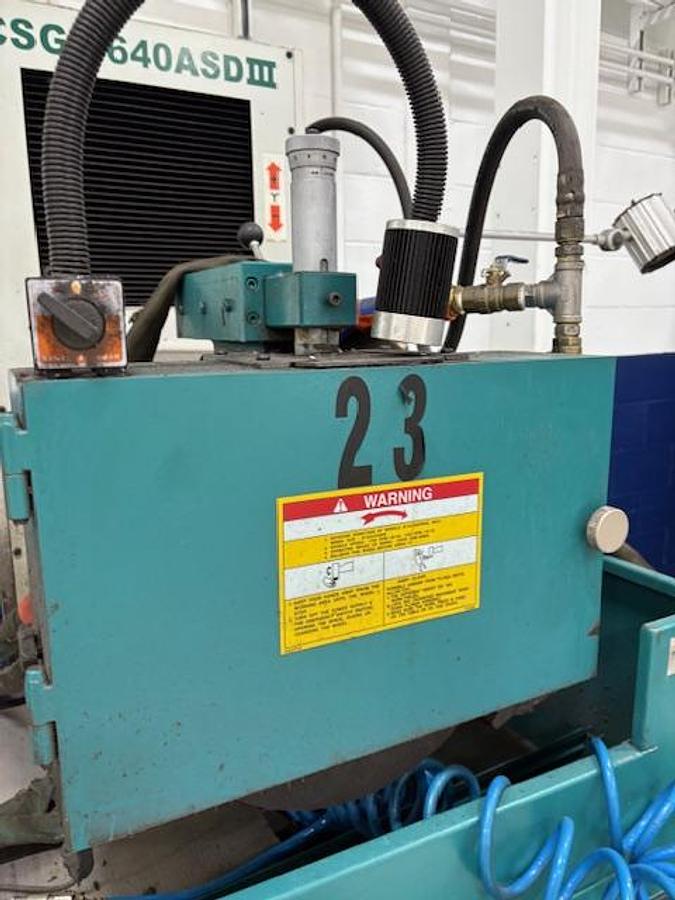

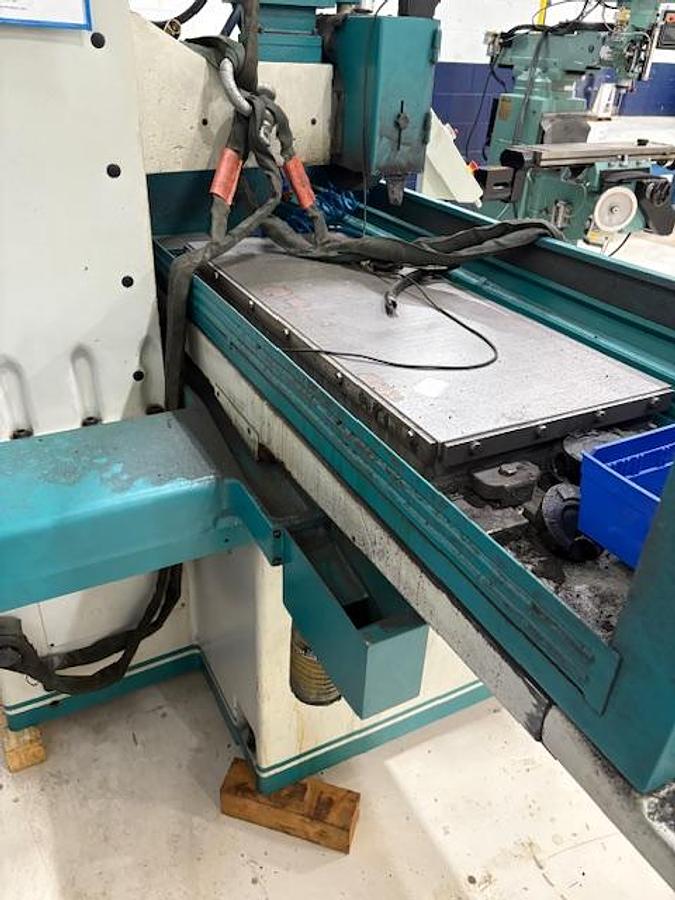

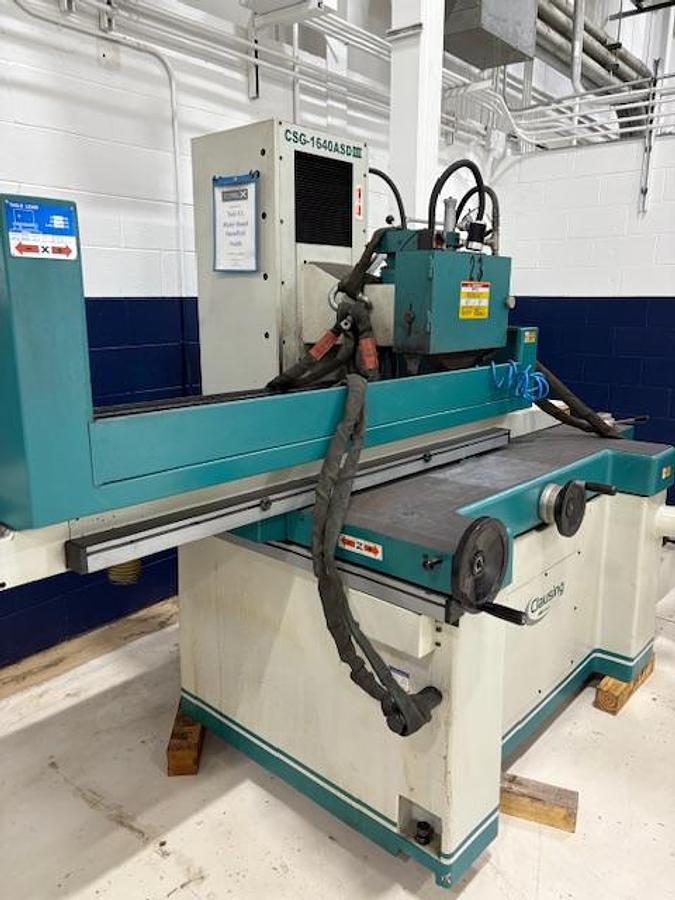

Clausing 1640 Surface grinder

The Clausing 1640 surface grinder has a table size of 16" x 40" and a maximum table travel of 18" (manual transverse travel). It features a 14" diameter grinding wheel with a 2" width and 5" bore, powered by a 7.5 HP motor (10 HP optional). The handwheel per revolution is 0.2", with 0.0008" per graduation. The machine requires a floor space of 158"L x 87"W x 81"H.

NEW BUILT 2021

Here's a more detailed breakdown:

• Table Size: 16" x 40".
• Chuck Size: 15.75" x 39.37".
• Max. Transverse Travel: 18".
• Handwheel: 0.2" per revolution, 0.0008" per graduation.

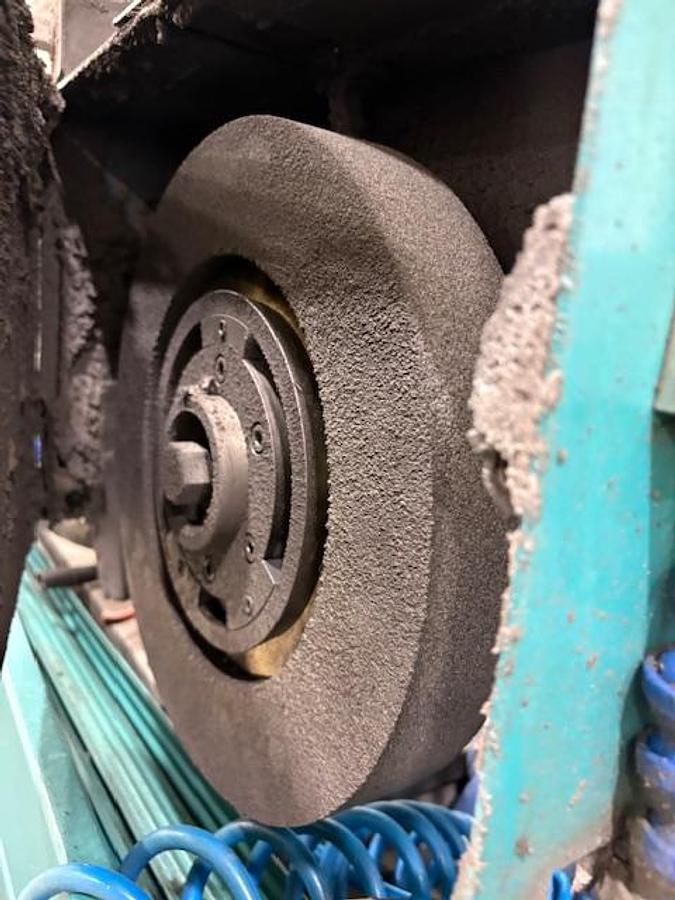

• Grinding Wheel: 14" diameter, 2" width, 5" bore.
• Motor: 7.5 HP (10 HP optional).
• Spindle Speed: 1750 RPM.
• Floor Space: 158"L x 87"W x 81"H.
• Optional Accessories: Coolant systems with varying capacities and paper feed options (manual or automatic) are available.

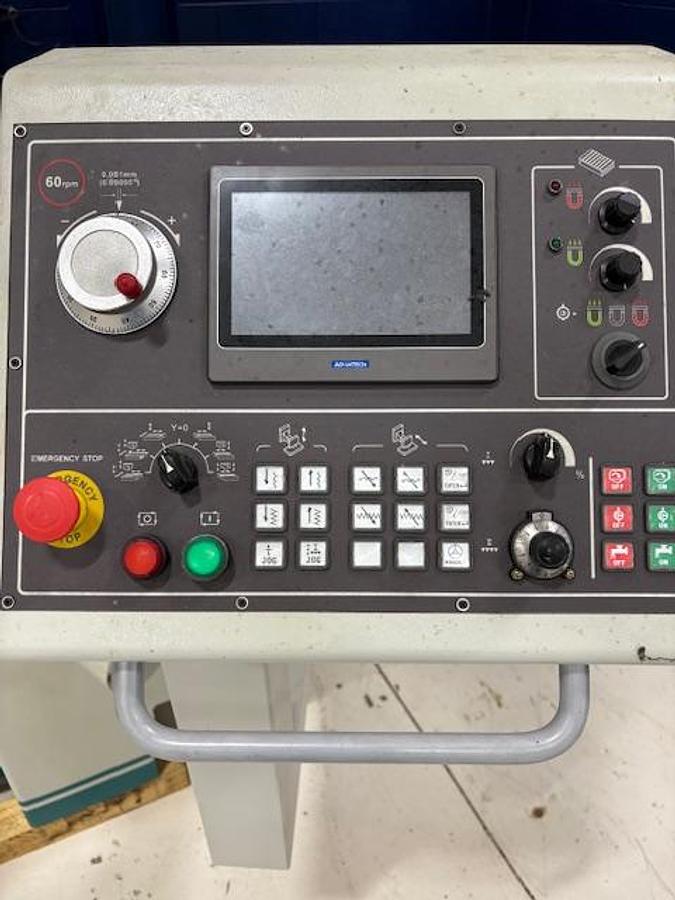

• Control Options: Some models feature a quick digital output feedback by encoder and a simple touch control panel with a digital display according to Light Tool Supply

CONDITION LIKE BRAND NEW -----Used 500 HRS
