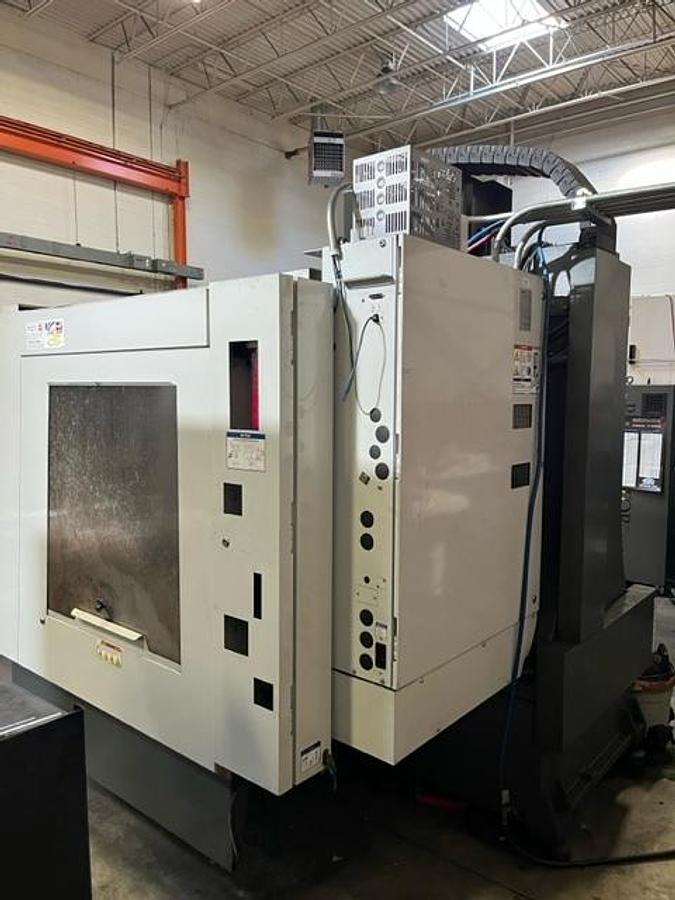

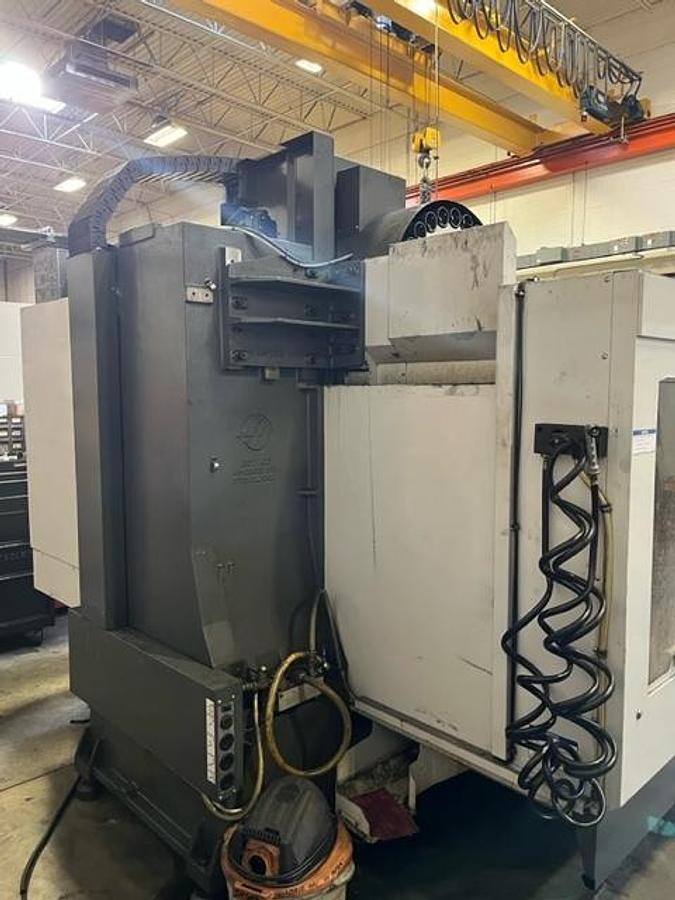

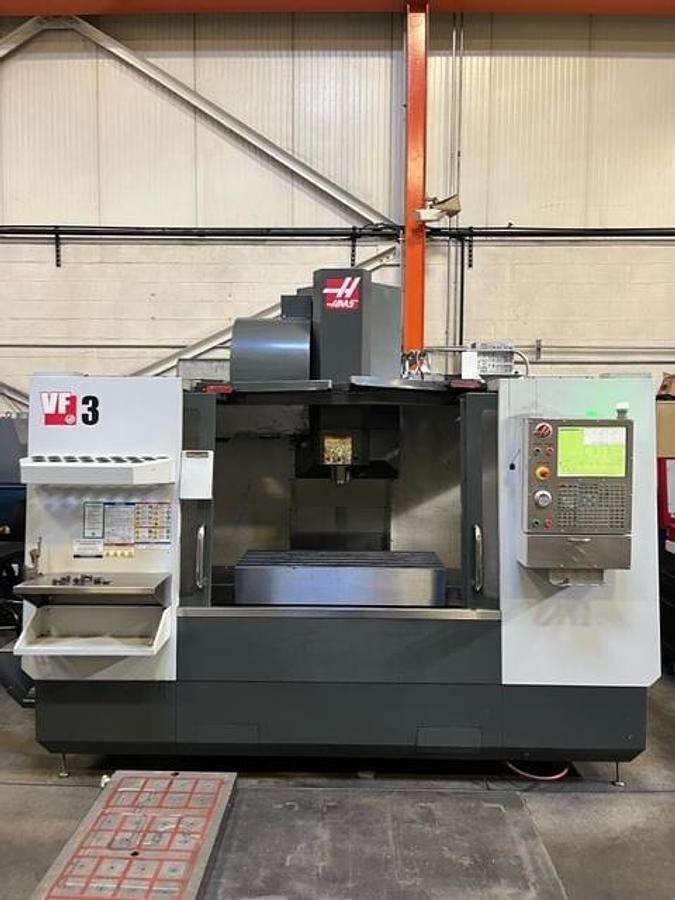

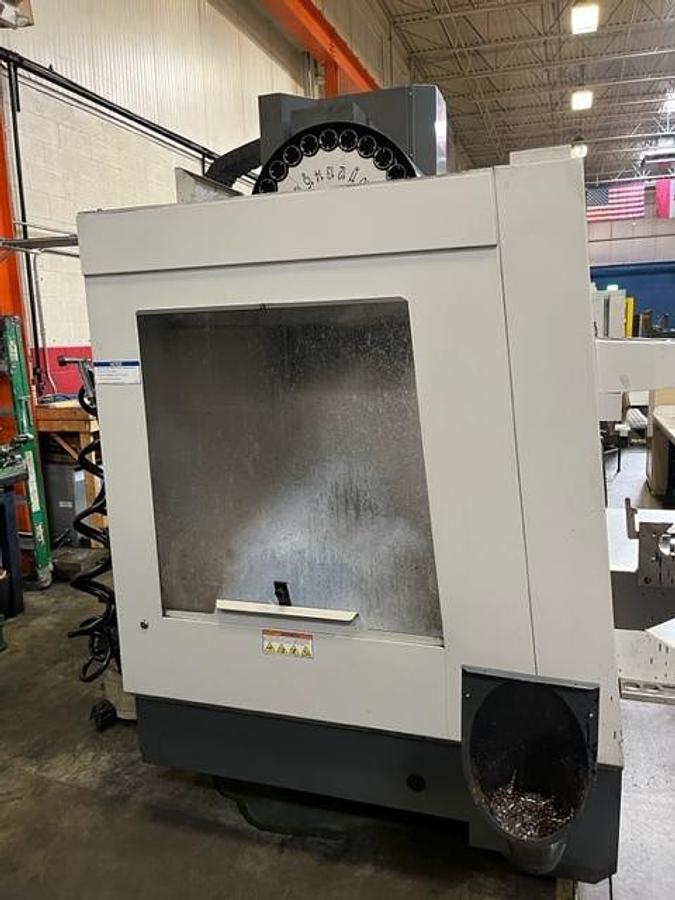

Haas VF 3 CNC Machine Center

 Axis Travel: 40"

Y Axis Travel: 20"

Z Axis Travel: 25"

Rapid Rate X Axis: 1,000 IPM

Rapid Rate Y Axis: 1,000 IPM

Rapid Rate Z Axis: 1,000 IPM

Max Table Load: 3,500 LBS

Spindle Motor: 30 HP

Spindle Speed: 15,000 RPM

Spindle Taper: 40 CT

Tool Changer: 20 ATC

Max Torque 90 ft-lbf

Max Cutting 650 ipm

Max Thrust X 2550 lbf

Max Thrust Y 2550 lbf

Max Thrust Z 4200 lbf

Max Tool Diameter 3.5"

Max Tool Weight 12 lbs

Tool-to-Tool 4.2 s

Chip-to-Chip 4.5 s

Table Size: 48" x 18"

Weight: 11,720 LBS

NEW BALL SCREW & nut in Z Axis
