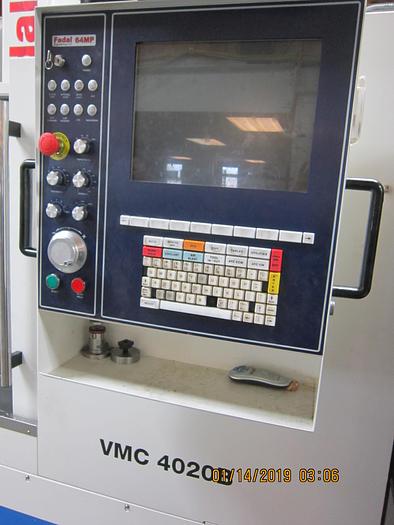

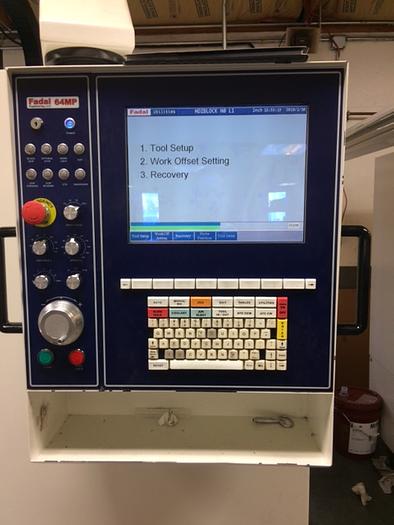

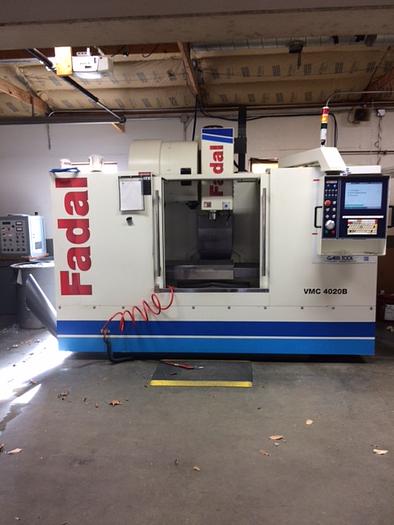

2017 FADAL VMC 4020B

Table Size 48" x 20" 1,21mm x 508mm Floor to Table 32" 813mm T-Slots (No. x Width x Span) 5 x .687" x 3.75" 5 x 17.5mm x 95.3mm Cutting Feed Rate .01-400 ipm (600 @ 150%) .25-10,160 (15,240 at 150%)mm/min. Rapid Feed Rate (X/Y/Z) 900 ipm (X/Y) 700 ipm (Z) 22.8 m/min (X,Y,Z) Max. Weight on Table 3,641 lbs. 1,652 kg. Axis Drive Motor (X/Y/Z) AC, 3,800 lbs peak thrust AC, 16,900 N* thrust Ball Screw Size 40mm Dia. (X/Y/Z) Longitudinal (X Axis) 40" 1,016mm Cross (Y Axis) 20" 508mm Vertical (Z Axis) 20" (28" Opt.) 508mm (711mm Opt.) Spindle Nose to Table 4"-24" (4"-32" Opt.) 102mm-610mm (102mm-813mm) Spindle Center to Column Ways 20" 406mm Main Motor - Automatic 2 Speed Vector 15 HP*, 11.2 KW Opt. HT Motor - Automatic 2 Speed Vector 22.5 HP*, 16.8 KW Torque 160 ft-lbs, 220 ft-lbs (Opt.) 220 Nm/300Nm/378Nm Accuracy, Axis Positioning ± .0002" .0050mm Accuracy, Axis Repeatability ± .0001" .0025mm Glass Scales (X/Y/Z) Optional Spindle Speed 10-10,000 rpm (15,000 Opt.) Spindle Orientation Electromechanical Spindle Taper No. 40 ATC, Number of Tools 21 (30 Opt.) ATC, Tool Selection Random, Bi-directional Max. Tool Diameter 3" (6" w/o adjacent tools) 76mm (114mm w/o adjacent tools) Max. Tool Length 15" 381mm Max. Tool Weight 15 lbs. 6.8 kg Machine Width and Depth 116" W x 87" D 3m W x 2.21m D Machine Maximum Height 104" 2.6m Machine Weight 10,500 lbs. 4763 kg Air Pressure Reqs. (Momentary) 120 psi, 15 scfm 5.5 Bar Power Reqs. (3-phase) 40/45 amps, 230 VAC (20/25 480 VAC) Single Phase (Optional) 60 amps, 230 VAC Cool Power System Spindle, Headstock, Ballscrews Ball Screw Supports (X/Y/Z) dual No. of Ground Boxways per Axis (X/Y/Z) 2 Coolant Thru spindle
