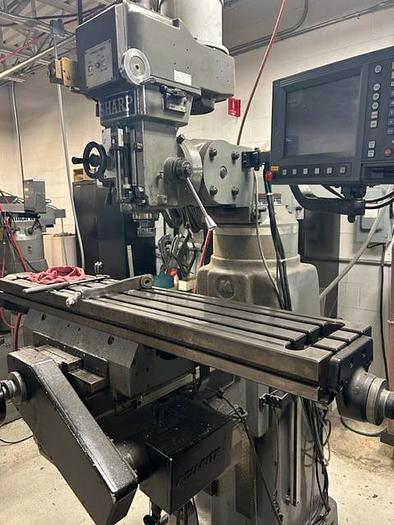

2004 Sharpe TMV-1 MP2 CNC Mill 2 Axis

Standard Features 2 Axis cnc vertical mill

New 2004

Power Draw bar

• 9 x 50” table, 11 x 32 x 5” travel, vari speed

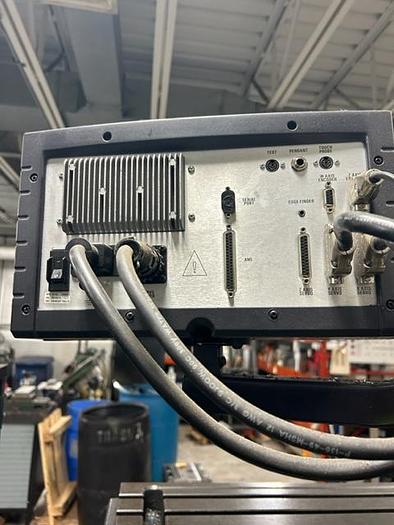

• AcuRite Millpwr G2 CNC3 axes control (Longitudinal, Cross)
• G code and conversational type programming
• 3 axes precision ball screws
• Safety handwheels
• Auto lube system
• 3 axes Digital Readout System (table, saddle, quill
• Servo drive system (3 axes) (table, saddle,
• Dual cooling fans
• Hard chromed ways
• Turcite coated saddle ways.

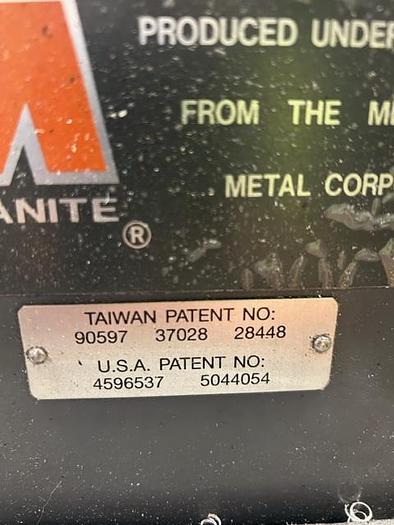

• Meehanite castings
• Roller bearing support bottom of motor shaft
• Abec-7 super precision angular contact bearings
• Complete Acu-rite Millpwr CNC system

Specifications

• Table Size: 9” x 50”
• T-Slots (No., Size, Pitch): 3”, 5/8”, 2.5”
• Table Travel: X Longitudinal: 32”
• Table Travel: Y Cross: 11”
• Quill Travel: Z Vertical: 5”
• Ram Travel: 12”
• Knee Travel: Vertical: 16”
• Spindle Center to Column: 6.75” – 18.5”
• Spindle Nose to Table Top: 2.12” – 18”
• Spindle Nose Taper: R-8
• Spindle Variable Speed Range: 60 – 4500 rpm
• Spindle Motor: 220V, 3 HP
• Quill Feed (Inch/Rev)(3 Speed): .0015”, .003”, .006”
• Head Tilt Angle (L/R): 45°
• Head Tilt Angle (Up/Down): 45°
• Floor Area: 7’ x 6.5’ x 7’
• Approximate Weight: 4,500 lbs.
• Complete with power draw bar

new price $38,000 condition, very good condition, Used in tool room in medical shop.
