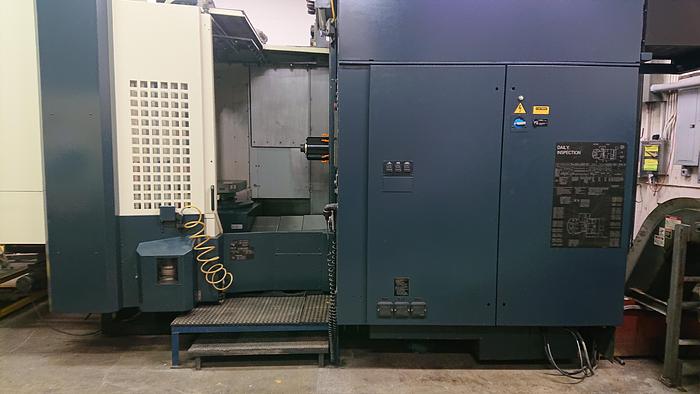

1998 Makino A-77 Horz Mach Center A-77

Contact us for price

Michigan

orCall 586-756-8855

Description

A77 Makino 1996 S/N 270 Pro 3 (Fanuc 16MB) Control X axis travel: 31.5” Y axis travel: 29.5 Z axis travel 31.5” B axis rotation .001⁰ (Full 4th Capability) (All axes with Heidenhain Scales) Pallet system with Auto Pneumatic Doors and Part Clamping Controls Pallet size: 24.8” square (630mm) Pallets: (2) w/ tapped holes, (1) w/ t slots (master) Pallet weight capable: 2000 lbs. Pallet / Fixture: Hydraulic and Pneumatic Clamping Capable (Rotary Couplings above Pallet Changer) Spindle: 40 Hp., 10,000 RPM, W/ Coolant Through Spindle CTS – 1,475 PSI Capable / 20 Hp. Motor Knoll Pump (KTS-32-64-T2-G) Tool taper: HSK-100A / Chip Reader System Magazine: 40 Tools, Random or Designated Pot, w/ Tool Breakage Detect Coolant System: 225 Gal. Tank, Chip Conveyor, 100, 50 Micron Filters, 7.5 Hp. Main pump, secondary pump for CTS. Controls, Heidenhain Scales, Fanuc System and servos Pallet Station with Auto Doors, Hydraulic and Pneumatic for fixtures Hydraulic and Pneumatic Ports for both pallets Hydraulic Clamping Pump / Pneumatic System Taper: HSK-100A Pallet load: 2,640 Lbs. Full 4th axis Contour Capable B-Axis is Infinate Degree indexing Tool Offsets 499 48 Extended Work Coordinates High Pressure Coolant Thru Spindle (20 Hp. - Knoll Screw pump - up to 1,475 psi) Hydraulic Rotary Coupling for Pallet Clamping Pneumatic Rotary Coupling for Pallet Clamping Auxiliary Maintenance Pendant for all axes The Machine Is in MINT CONDITION & LOADED WITH OPTIONS , YOU NAME & ITS GOT IT. & TOOLING!!!!

Specifications

ManufacturerMakino A-77 Horz Mach Center
ModelA-77
Year1998
ConditionUsed
Hours8,850
