2002 Belmont Maxi Cut S 26

(1) Used Belmont Maxi Cut S-36 NC EDM Drill - HOLE POPPER

    New 2002

Specifications:

 Travels - X axis .......... 14.9"

         - Y axis .......... 11"

         - Z axis .......... 13.7"

         - W axis .......... 13.7"

 Guide height adjustment ... 5.9"

 Open height ............... 3.7" - 17.5"

 Max current ............... 30A

 Max electode diameter ..... 3mm (0.12")

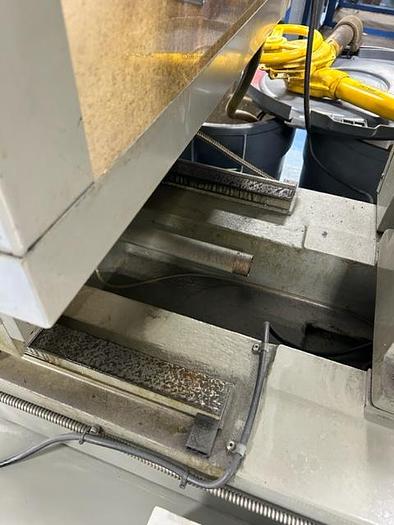

 Work table dimensions ..... 25.5" x 13.7"

 Max. workpiece weight ..... 2200 lbs

 Machine dimensions ........ 70" x 66"W x 119"H

 Approximate weight ........ 5000 lbs

EQUIPPED WITH:

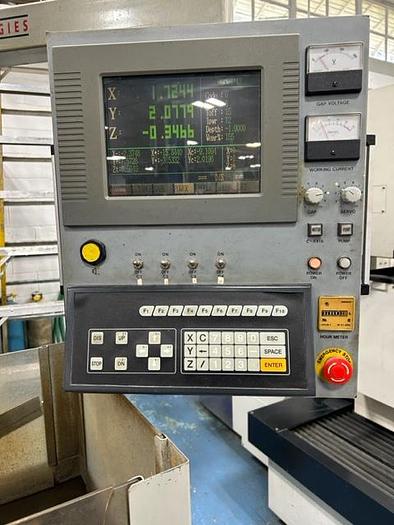

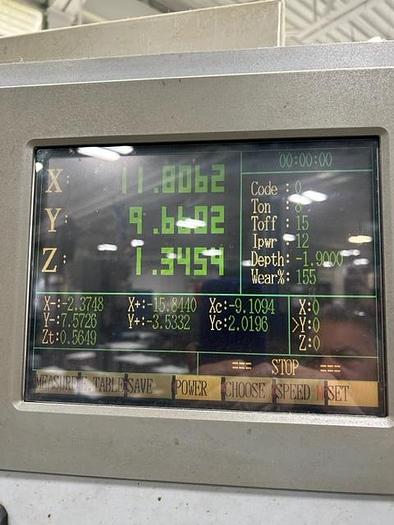

 Touch Screen control with NC Z-axis with DC servo drive

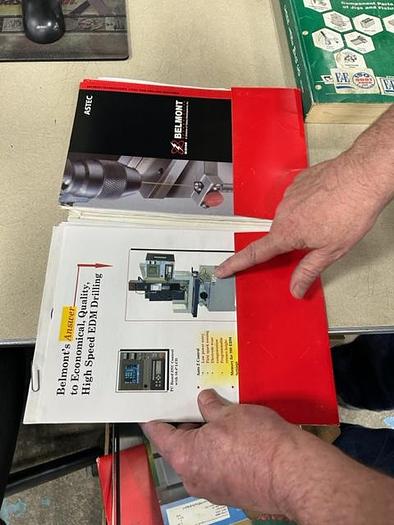

Complete with All manuals & runs perfect, just plug it in & you're ready.
