OKUMA

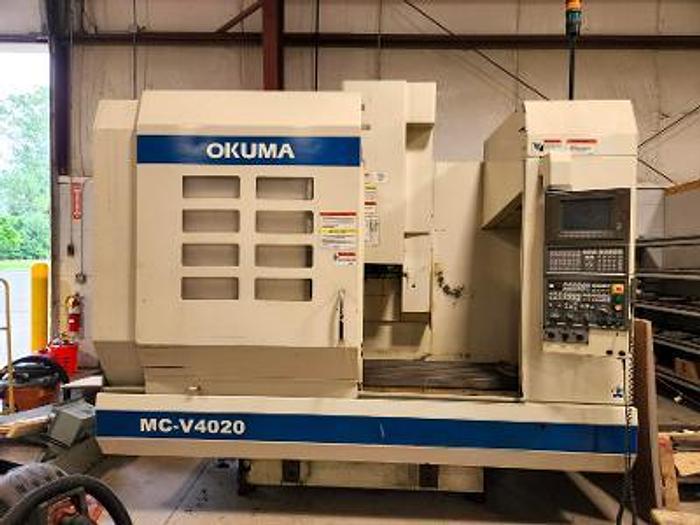

OKUMA MCV 4020 CNC Vert Machine Center

New 2000

SPECIFICATIONS:

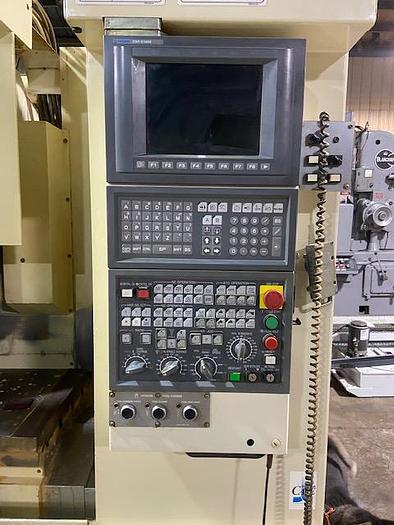

CNC controls E 100

Table Working Surface............................. 48" x 20"

Table Load Capacity............................... 1,500 LBS

Longitudinal Travel (X-Axis)...................... 40"

Cross Travel (Y-Axis)............................. 20"

Vertical Travel (Z-Axis).......................... 17.7"

Rapid Traverse Rate (X and Y Axes)................ 1417 IPM

Rapid Traverse Rate (Z Axis)...................... 1181 IPM

Maximum Feedrate (X, Y, & Z Axes)................. 1181 IPM

Spindle Face to Table Surface..................... 6.3" - 24"

Tool Storage Capacity............................. 20

Spindle Speeds Range..............................15,000 RPM

Spindle Taper..................................... CAT-40

Spindle Motor..................................... 30 HP

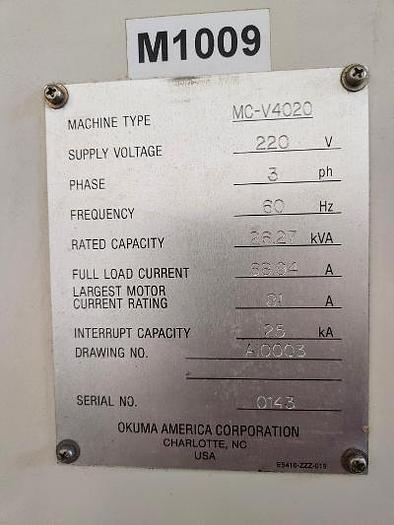

Electrics......................................... 220/3/60

Approximate Machine Dimensions.................... 114" x 111"

Approximate Machine Height........................ 104"

Approximate Machine Weight........................ 16,000 LBS
