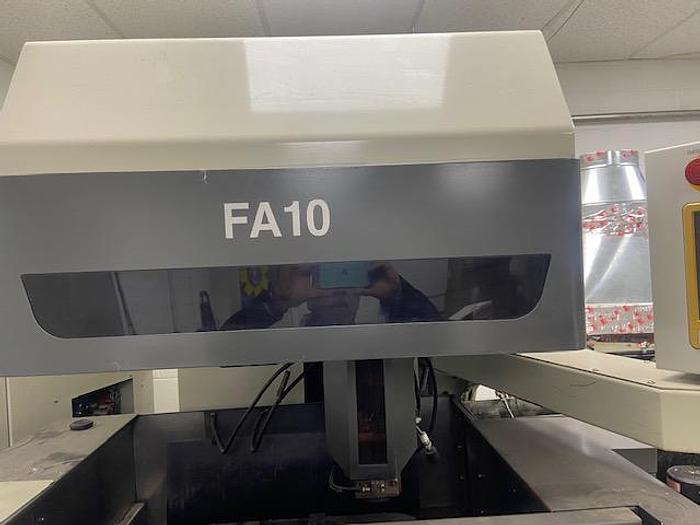

Mitsubishi Wire EDM FA-10

Good Used, All together , Auto threader , scrap chopper ,filters

Mitsubishi FA10 M Wire EDM

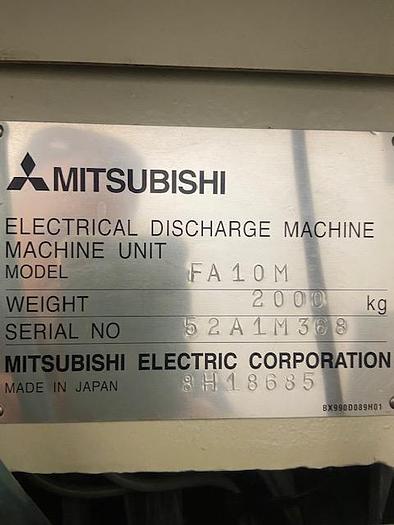

Manufacturer: Mitsubishi

Model: FA10 M

Year: 2002

Machining Stroke ( X x Y x Z ) 13.8" x 9.8" x 8.6"

Table Size 23.2" x 20.2"

Maximum Workpiece Size 31.5" x 23.6" x 8.5"

Maximum Workpiece Weight 1,105 lbs

Machining Stroke ( U x V ) ±3.0" x ±3.0"

Taper Capacity +-30 deg max / +-30 deg @ 4"

Wire Diameter Range Possible 0.004"-0.012"

Minimum Resolution .000004"

Min Hole Diameter for Autothread .020"

Max Wire Spool Size 17.6 lbs

Filter Tank Capacity 116 Gal

Approximate Overall Dimensions 82" x 97" x 81"

Approximate Machine Weight 4,400 lbs

Equipped With:

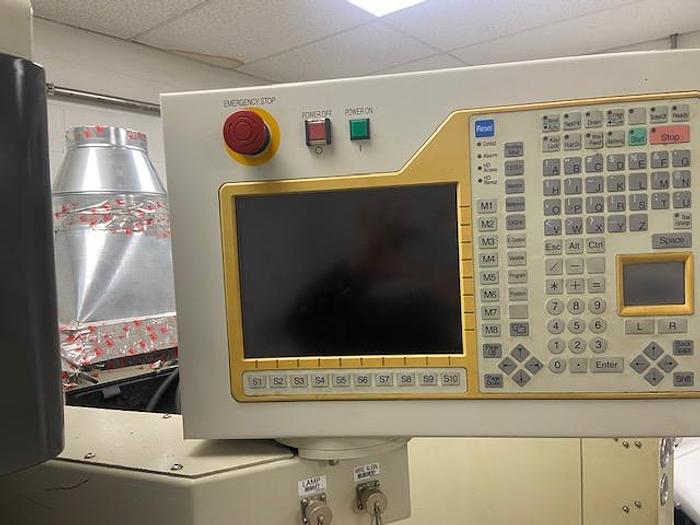

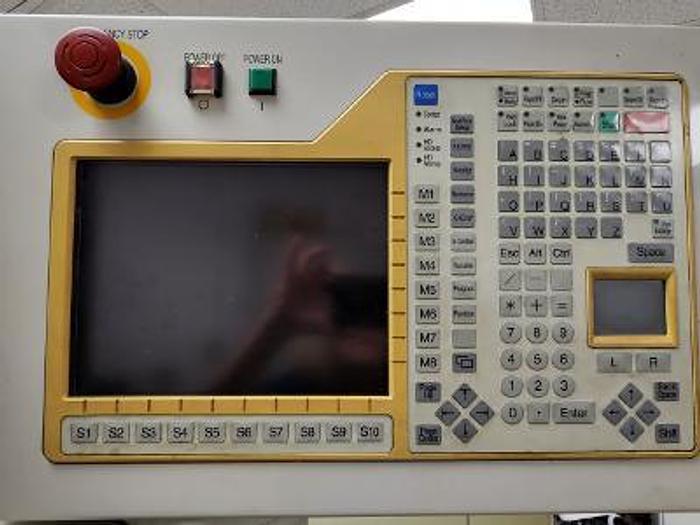

* Mitsubishi M700 64 Bit PC Based CNC Control

* Submerged Machining Capability

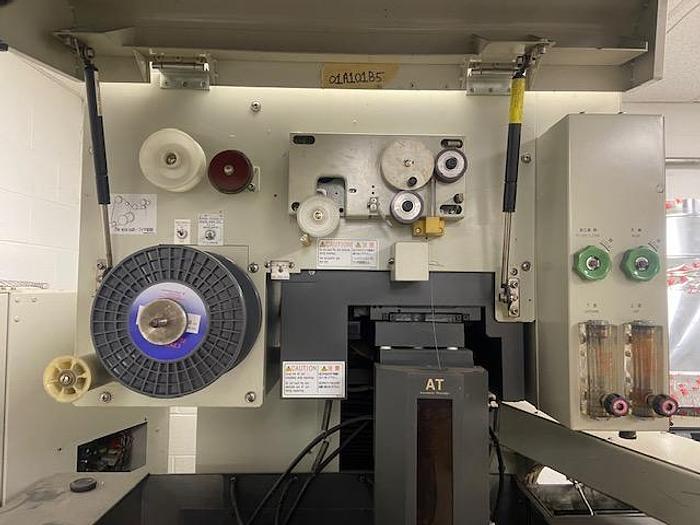

* Automatic Wire Threader (AT)

* Ethernet, USB & RS232 Communications

* Linear Glass Scales (X-Y Axes)

* Fine Resolution Encoder Feedback (U-V-Z Axes)

* Automatic Fluid Level Control

* Auto-Lock Vertical Tank Door Mechanism

* Full 4-Sided Work Table

* Power Master Control (Automatically Adjusts Power Settings)

* Fine-Grain Dianite Casting Material

* DC-Servo (Closed Loop) Torque Control Wire Tensioning

* Standard Long Travel 3-Inch U-V Taper Unit

* Direct Drive 32mm Ball Screws

* Linear Motion Guide Ways

* Digital 500 Watt AC Servo Drive System

* All-Axes Absolute Control System

* 16 Step Programmable Flushing Control

* Worklight

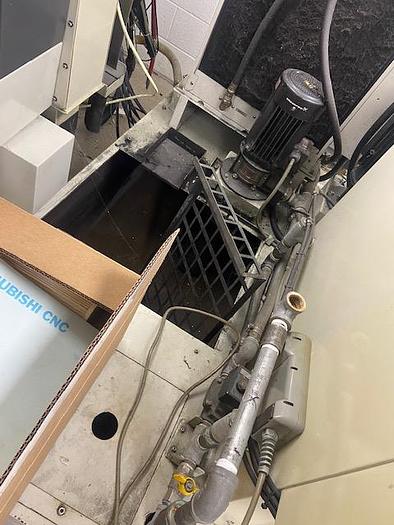

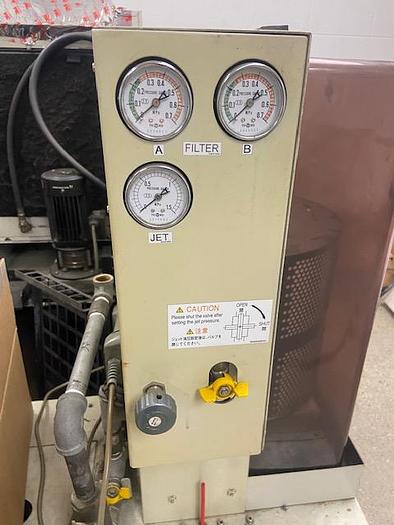

* Filtration System

* Electric Chiller

* All Available Manuals and Accessories as available
