Haas VF 3 / with 4/th axis

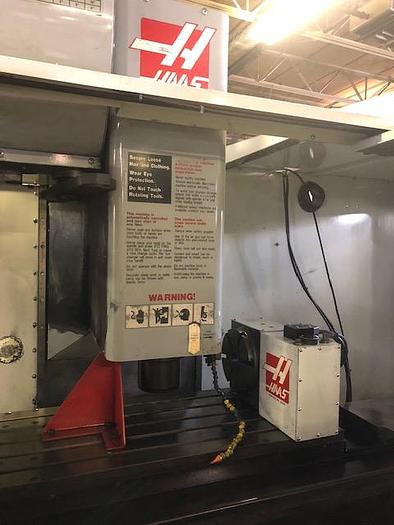

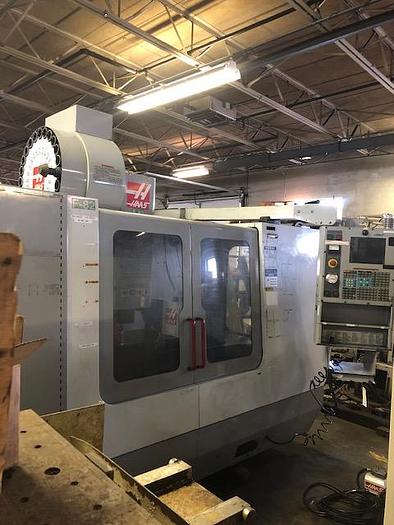

2003 Haas VF3 Vertical CNC Machining Center with 4th Axis S/N 32846 / Oct 2003

Travels:

X-Axis: 40″

Y-Axis: 20″

Z-Axis: 25″

Rapid Traverse Rates: 710 Inch Per Minute Cutting Feed Rates: 500 Inch Per Minute Spindle Nose to Table (Min.- Max.): 4″ – 29″

Table:

Length: 48″

Width: 18″

Number of Std T-Slots: 5

T-Slot Width: 5/8″

Max Weight on Table: 1500 lbs

Spindle:

Taper Size: 40

Speed Range: 0 – 7500 RPM

Spindle Type: Gear Head

Spindle Power: 20 HP Vector Dual Drive

Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:

Capacity: 20 + 1

Max Tool Weight: 12 lbs

Max Tool Dia: 3.6″

Max Tool Length: 13″

Tool Changing Time: 4.2 Seconds

General:

Air Required: 100 psi, 4 scfm

Power: 220v / 66FLA / 3-Phase

Overall Dimensions: 118″ x 98″ x 100″ High

Weight: 12,500 lbs

Haas VF-3 Features:

2 Speed Gearbox

side mount atc

20 + 1 automatic tool changer

Programmable coolant

Chip Conveyer

Floppy Drive

Flood Coolant system

Rigid Tap

24.9

 We will load at no cost

Can be seen underpower
