Description

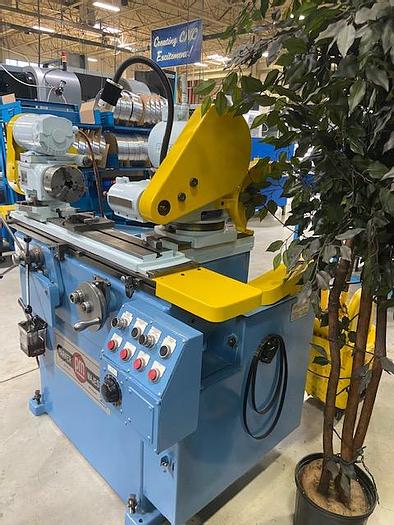

Parker Majestic 16C Universal OD / ID Grinder – Reconditioned

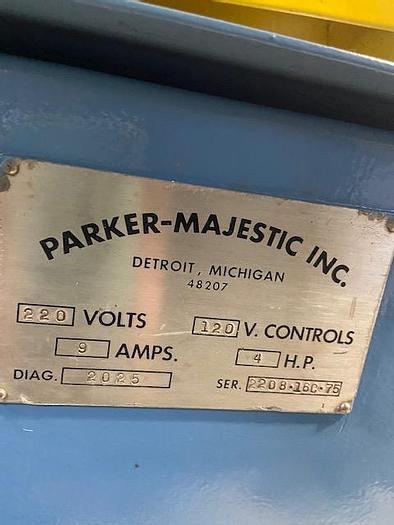

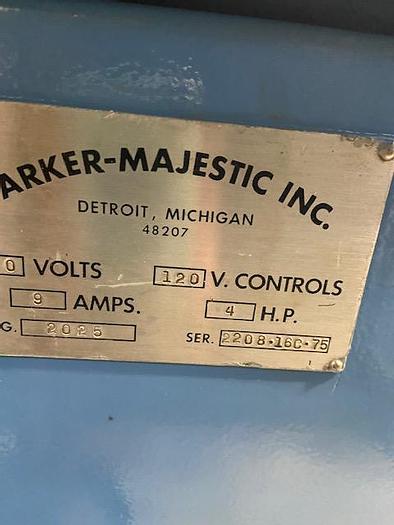

Serial No. 2208-16C-75

Reconditioned – 2020

SPECIFICATIONS:

Swing Over Table………………………………………………….12″

Distance Between Centers…………………………………………..16″

Table Working Surface…………………………………………5″ x 38″

Power Table with Reciprocator………………………………………Yes

Tabel Swivel………………………………………………..7 Degrees

Table Travel……………………………………………………..24″

Cross Feed Travel………………………………………………3-1/2″

Cross Feed Adjustment………………………………………………4″

Cross Feed Handwheel Graduations………………………………..0.0005″

Cross Feed Precision Dial Graduations………………………….0.000050″

Grinding Wheel Size……………………………………….10″ Diameter

Grinding Wheel Bore Size………………………………………..3″

Wheelhead Motor…………………………………………….1-1/2 H.P.

Headstock Swivel……………………………………….0 to 90 Degrees

Infinite Variable Headstock Spindle Speeds………………….20 to 225 RPM

Hole Thru Spindle………………………………………………1-1/4″

Headstock Center Taper………………………………………..#6 Jarno

Tailstock Center Taper………………………………………..#6 Jarno

Spindle Motor………………………………………………1-1/5 H.P.

Electrics………………………………………………..220/3/60

Approximate Dimensions……………………………….69″L x 37″L x 57″H

Approximate Weight………………………………………….3,750 Lbs.

EQUIPPED WITH:

Swing-Around Internal Grinding Attachment with I.D. Spindle ( 15,000 Max RPM )

Power Table Option with Reciprocator Feature

Tailstock Center and Workhead Center

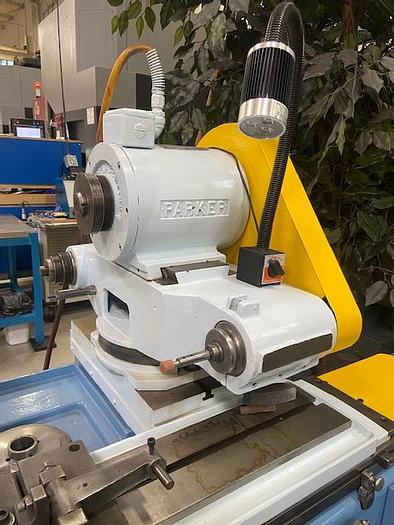

Parker-Majestic Super-Precision Spindle for Wheelhead

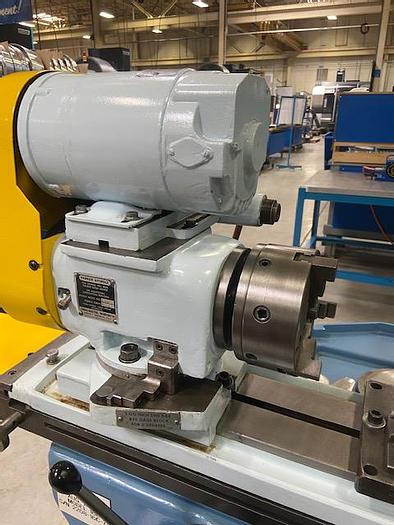

Parker-Majestic Live/Dead Workhead, Spindle Model No. 2300-3

Workhead Accepts 5C Collets

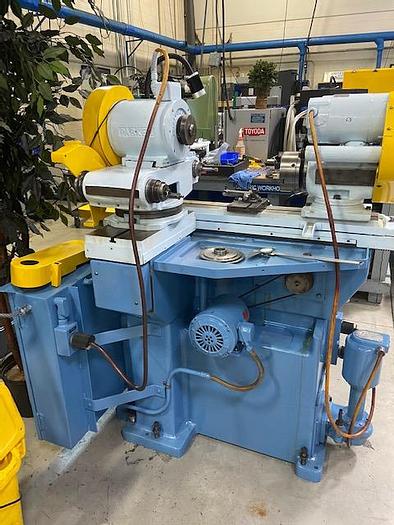

Coolant System, Self-Contained, in the Base of the Machine

One-Shot Lubricator

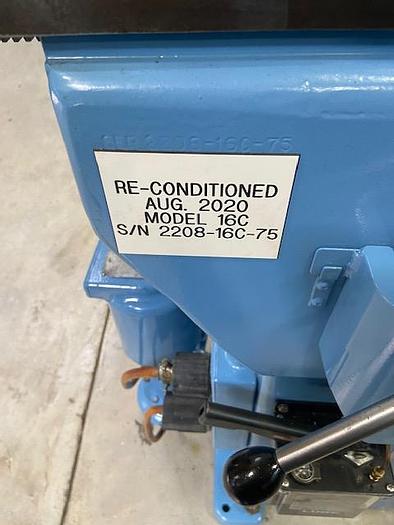

Reconditioned 2020

Table, Bed & Infeed Slides Ways – Ground, Scraped & Flaked

New Leadscrew & Nut for the Infeed Slide

New Lubrication Pump, Lines & Meters

Cleaned, Painted & Cycled

Specifications

ManufacturerParker
Model16 C
Year2020
ConditionRefurbished
