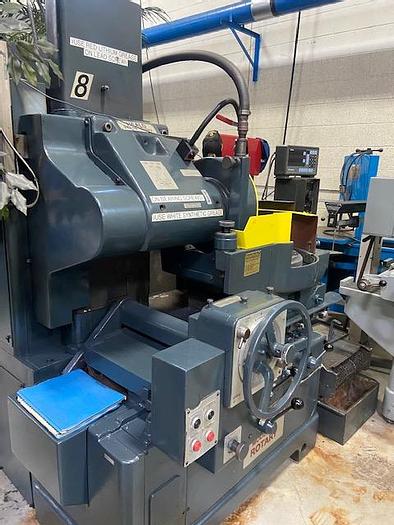

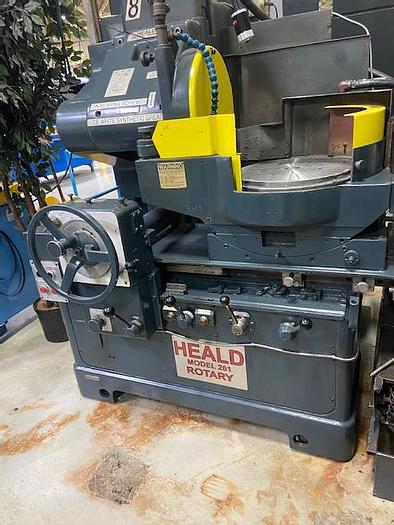

Heald Rotary 261

Heald 16” Rotary Grinder Model 261

Specifications:

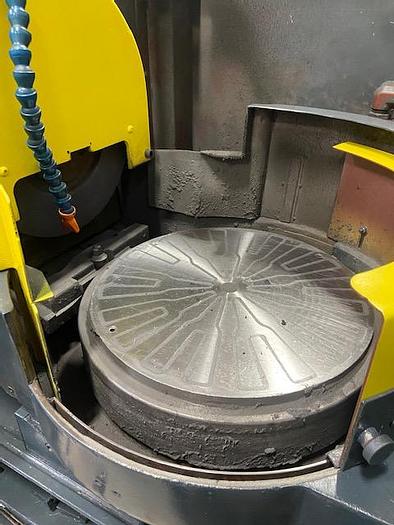

Magnetic Chuck Diameter 16 7/8”

Swing inside Coolant Pan 18 ½”

Vertical Capacity 10 ½”

Maximum Angle – Convex 17 Degrees Maximum Angle – Concave 10 Degrees

Chuck Speeds 50 225 RPM

Wheel Speeds 1680 RPM

Table Speeds – Rapid Traverse 35 fpm

Table Speeds – Grinding 012 fpm

Approximate Dimensions 77” x 83’

Weight 8,100 lbs.
