Cincinnati Vertical Mill #550-20

Sold

Cincinnati Vertical Mill #550-20

$9.50 (USD)

Location:Dryden, MI

Description

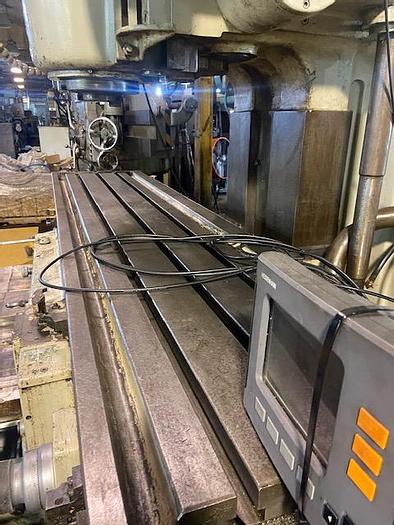

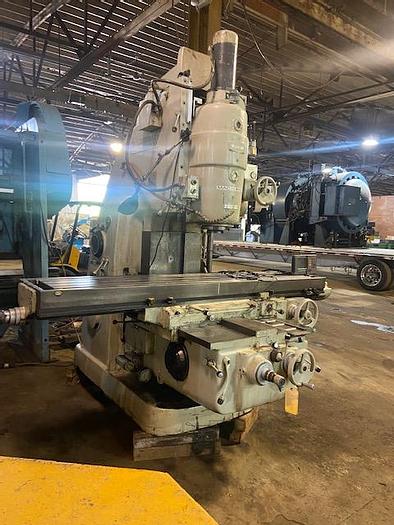

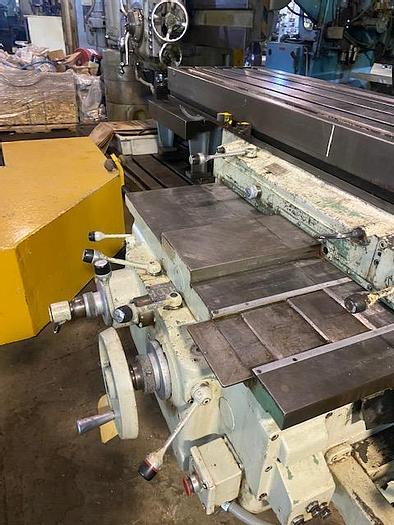

Cincinnati #5 Vertical mill

Model 550-20


S/N 310555V75-0004

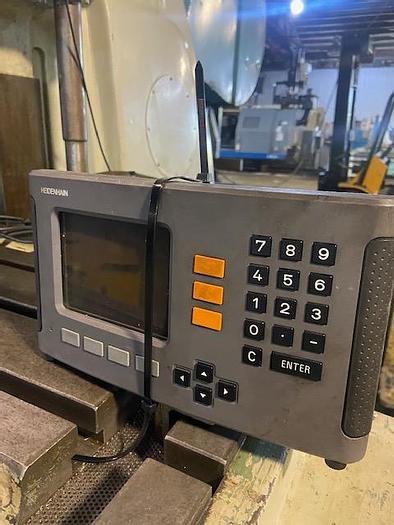

Read outs

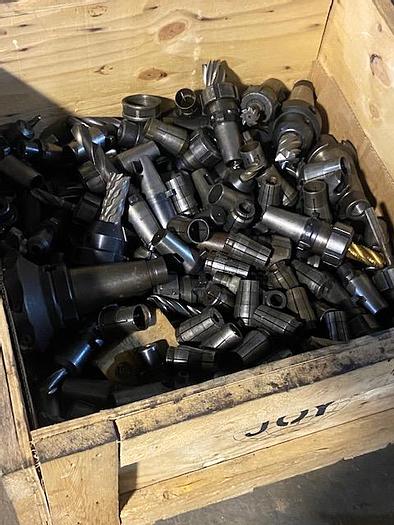

Large box of tool holders- approx. 50


AREA OF TABLE ............................. 94-1/2" X 20"

SPINDLE SPEEDS ............................ (24) 14 TO 1400 RPM

LONGITUDINAL AND CROSS FEEDS .............. (32) 3/8 TO 90 IMP

VERTICAL FEEDS ............................ (32) 3/16 TO 45 IPM

LONGITUDINAL TRAVEL ....................... 50"

CROSS TRAVEL .............................. 18"

VERTICAL TRAVEL OF HEAD ................... 8"

VERTICAL TRAVEL OF KNEE ................... 16"

DISTANCE SPINDLE TO TABLE ................. 0" MIN TO 22" MAX.

TAPER IN SPINDLE .......................... #50 NS

RAPID TRAVERSE ............................ 150 IMP

50 HORSEPOWER MAIN MOTOR


Open Runs great



Specifications

ManufacturerCincinnati
Model550-20
Year1972
ConditionUsed
