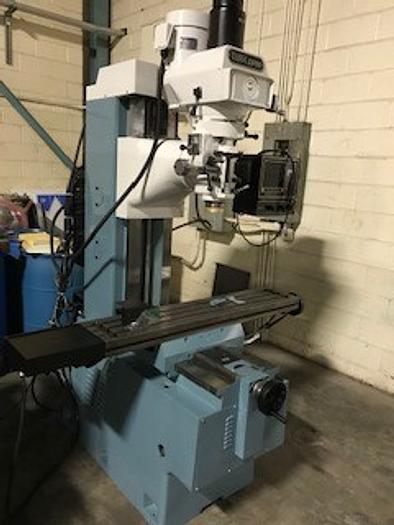

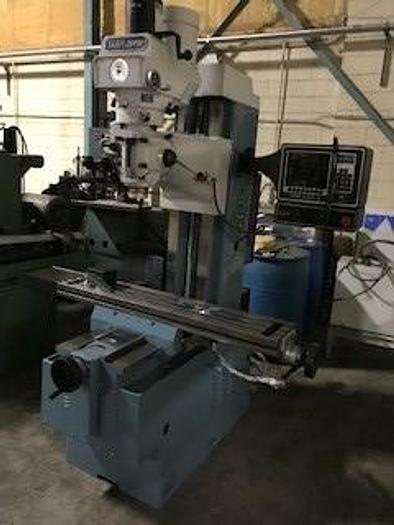

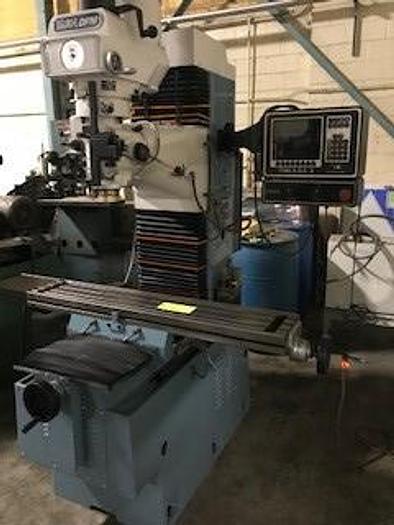

2000 Southwestern DPM
No longer available
2000 Southwestern DPM
$11,000 (USD)
Michigan
Description
50″ x 10″ table size
T-Slots –5/8"x 3 x 2-1/2″
Table Travel – 32″
Saddle Travel – 16″
Knee Travel – 16″
Ram Travel – 15″
Maximum Quill Travel – 5″
Quill Diameter – 3-3/8″
Spindle Taper – R8
Spindle Speed – 60-4200 RPM
Head Tilt – 45 deg. forward, 45 deg. back, 90 deg. left, 90 deg. right
Spindle Motor Power - 3HP continuous
Power Requirements, machine - 220/ 440V;3P; 8.5/4.25A
Maximum Weight on Table – 850lbs.
Machine Weight – 2816 lbs.
Machine dims l, w, h - 71″ x 59″ x 84″
Maximum rapid feed – 100IPM
Way surface type - Dovetail X, Z Square Y
Precision 7207 CP4 spindle bearings
Chrome hardened and ground quill
Meehanite® castings •SlidewaysareTurcite® coated
Wide way surfaces are hardened and ground
Specifications
Manufacturer | Southwestern |
Model | DPM |
Year | 2000 |
Condition | Used |
Serial Number | 004BF10570 |
Stock Number | 1200 |
