Miyano BNC 34 T

MIYANO  BNC-34T 1994

Model BNC-34T, serial  BN-3300TU

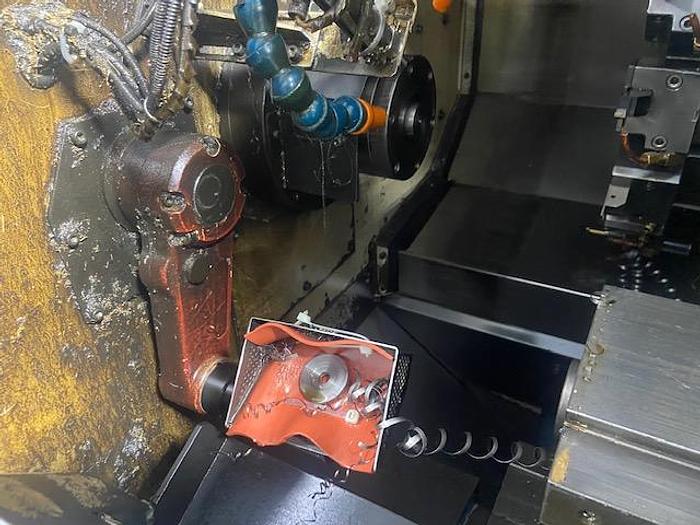

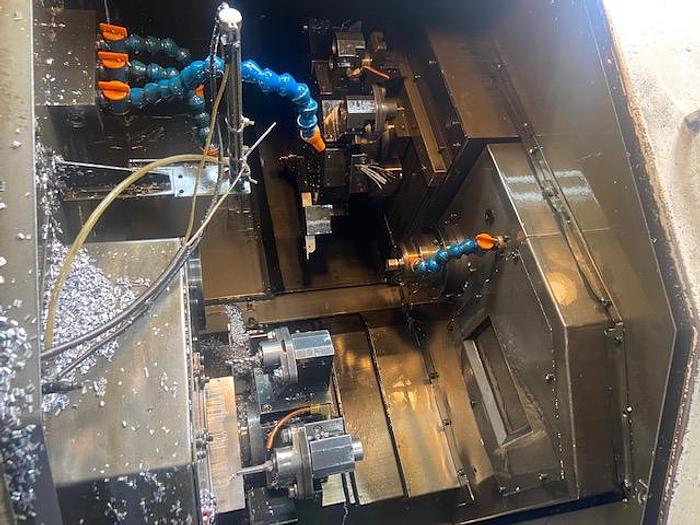

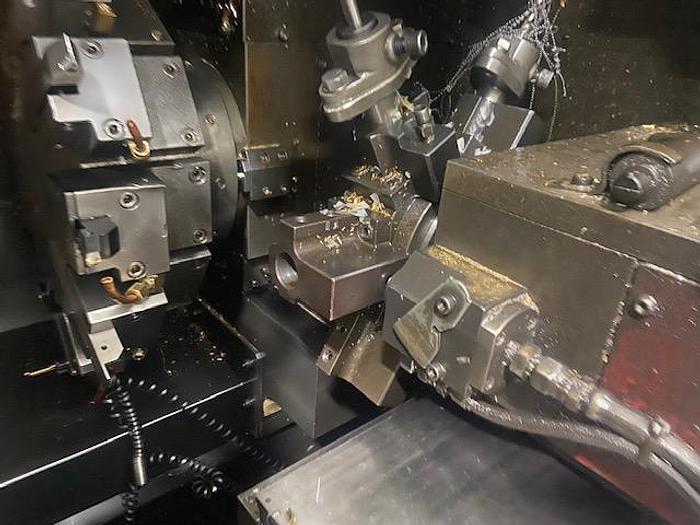

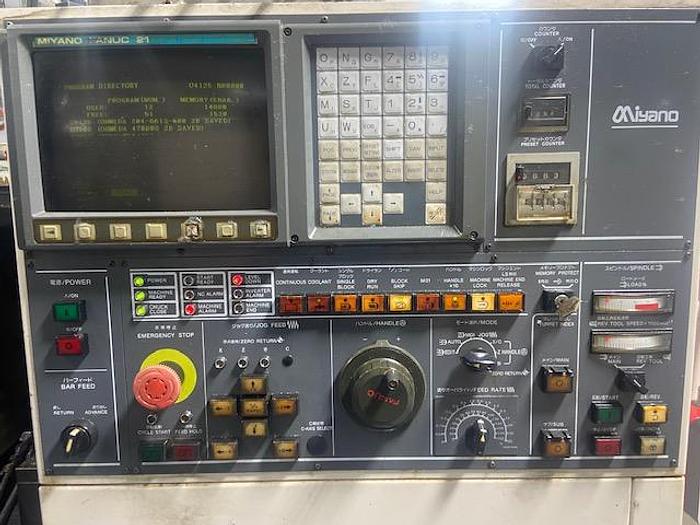

EQUIPPED WITH:  Fanuc OT-C CNC Control with CRT, RS232 Port for DNC System, Spindle Load Meter,(2) 6 Station Turrets, Programmable End Working Turret Provides 3 Axis Simultaneous Cutting Capability, , Programmable Part Catcher w/ Parts Conveyor, Heavy Duty Slant Bed Construction, Chip Conveyor,

Coolant System. 6"chuck and collet chuck

CATALOGUE SPECIFICATIONS:

Max Bar Capacity.......................................... 1-5/16"

Max Swing over the Cross Slide............................ 10.62"

Max Part Length........................................... 7-7/8"

Max Turning Diameter...................................... 4-3/4"

Cross Travel (X-Axis)..................................... 3-7/8"

Longitudinal Travel (Z-Axis).............................. 11-3/8"

Number of Turrets......................................... 2

Turret Positions.......................................... 6 Each

Spindle Speed Range....................................... 170-5000RPM

Spindle Drive Motor....................................... 10 HP

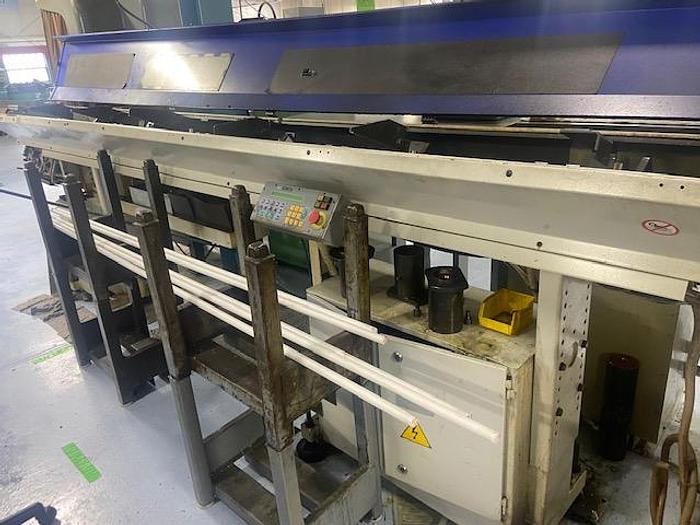

Approximate Machine Dimension(w/o Barfeeder).............. 59" x 100"

Approximate Machine Height................................ 67"

Approximate Machine Weight................................ 6,200 LBS
