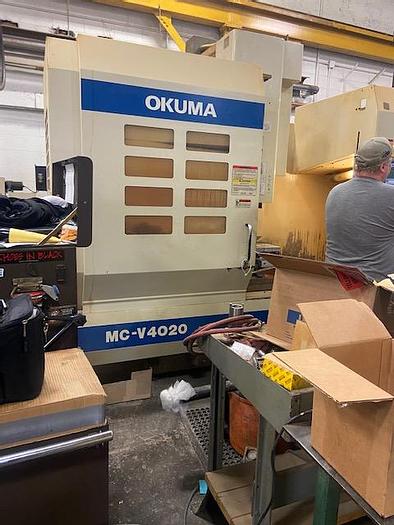

2006 OKUMA MCV 4020 Vertical Machining Center 2006 OKUMA MCV4020 2006

2006 OKUMA MCV 4020 Vertical Machining Center 2006 OKUMA MCV4020 2006

Contact us for price

Dryden, MI

orCall 586-756-8855

Description

OKUMA MCV 4020 Features: New 2006 OSP-E100 CNC Control 32 Automatic tool changer RS 232 Port Travels: X-Axis: 40.1″ Y-Axis: 20.3″ Z-Axis: 20.8″ Rapid Traverse Rates: 941 Inch Per Minute Cutting Feed Rates: 475 Inch Per Minute Spindle Nose to Table (Min.- Max.): 6.1″ – 26.1″ Table: Length: 47″ Width: 20″ Number of Std T-Slots: 3 T-Slot Width: 5/8″ Max Weight on Table: 1100 lbs Spindle: Taper Size: 40 cat Speed Range: 15,000 RPM Spindle Power: 20 HP Max Torque: 90ft-lb @ 2000RPM Automatic Tool Changer: Capacity: 32 Max Tool Weight: 18.2 lbs Max Tool Length: 12″ Tool Changing Time: 3.6 Seconds General: Air Required: 80 psi, 4 scfm Power: 240v / 35 KVA / 3-Phase Overall Dimensions: 150″ x 92″ x 99″ High Weight: 12000 lbs Full set of manuals One owner machine,

Specifications

ManufacturerOKUMA MCV 4020 Vertical Machining Center 2006
ModelOKUMA MCV4020 2006
Year2006
ConditionUsed
Stock Number1931
Hours4,205
