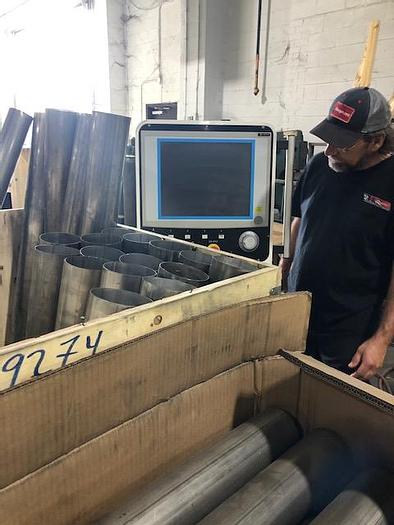

SOCO CNC Bender 2017

Model …….SOCO SB-90 X 5B-2S Tube Bender

Machine Features:

·      5 individually programmable axes

·      Max. ?88.9mm capacity

·      Individually controllable pressure die assists for each bending stack

·      Programmable 2 speeds early mandrel extraction

·      Each axis may be individually programmed during arm return mode

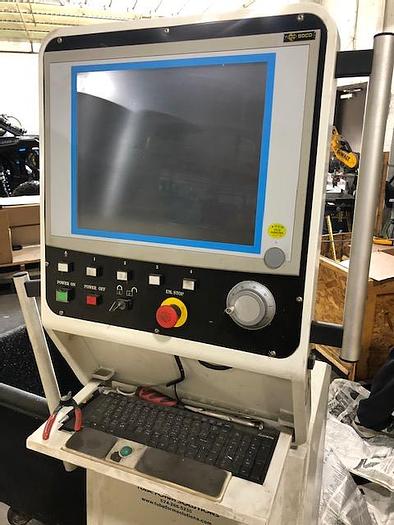

·      SOCO proprietary control software with IPC & Touch Screen

·      Built-in wiper die, pressure die and clamping die seats

·      High accuracy and repeatability (± 0.1mm /± 0.1° for all axes )

·      Ability for 1D Bending 1(*) and Roll Bending (**)

·      Single and multi-stacks models

·      Standard with Automatic Mandrel Lubrication System

·      Centralized greasing and lubrication system for all sliding areas

(*) Depending on tube O.D. and elongation ratio

(**) May be added by request – 2SV models

Software Features:

·      Automatic springback compensation

·      Recapturing function for short lengths

·      Data entry for both XYZ and YBC coordinates

·      XYZ to YBC coordinates conversion

·      YBC to XYZ coordinates conversion

·      Arm return programming mode (Overmode)

·      Arc Radius calculator for large radius bending

·      Carriage Boost settings’ page for 1D Bending

·      Ability to use Positive and Gripper Mode Feeding in the same part

·      Fi le management for parts and tooling

·      Data storage of files ( 2 million files , 50 bends per file ) ( * )

·      3D display and rotation of parts

·      Mirroring and image reversal of parts

·      Ability to edit files while Bending

·      Windows platform

·      Self diagnostics + Error messages display

·      Connection and Auto compensation to CMM systems ( ** )

·      Simultaneous opening of files ( 4 files at one time )

·      Programmable mandrel extraction and mandrel lubrication

·      Individually programmable axes

·      Multiple built-in action and bending sequences

·      Built-in internet connection for Remote troubleshooting

·

These specifications are true to best our ability
