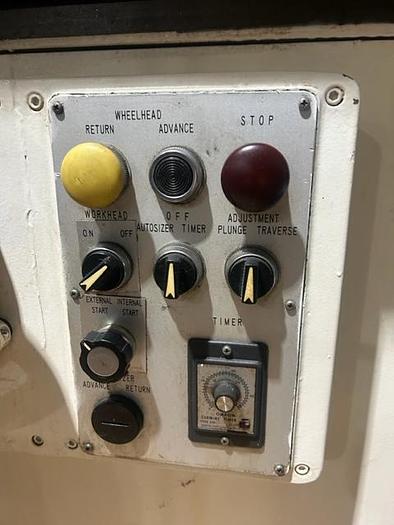

1977 Toyoda GUP- 30x100

DESCRIPTION:

12" x 40", TOYODA, No. GUP30-100, SWING DOWN ATTCH/ including ID SPINDLE,

SPECIFICATIONS:

SWING

12"

CENTERS

40"

POWER

5 hp

MODEL: GUP30x100

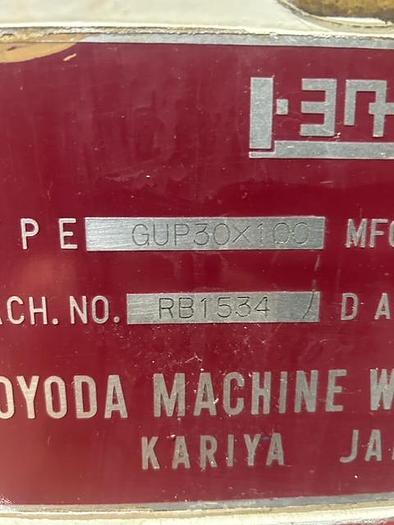

S/N: RB 1534

SPECIFICATIONS:

MAX. DISTANCE BETWEEN CENTERS................... 40"

MAX. SWING OVER TABLE........................... 11.8"

MAX. DIAMETER OF WORK GROUND W/ FULL

SIZE WHEEL..................................... 6"

MAX. WEIGHT OF WORK HELD BETWEEN CENTERS........ 275 LB

MAX. WEIGHT OF WORK HELD BY CHUCK OR

 FACE PLATE..................................... 44 LB

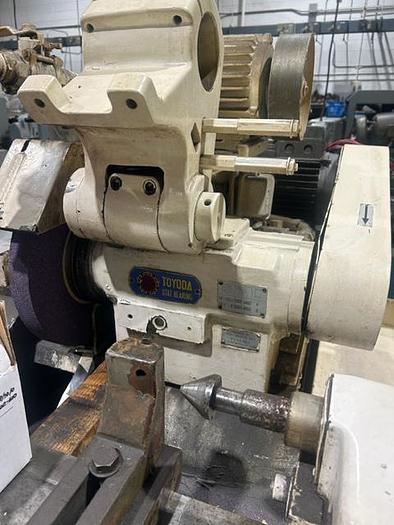

WHEELHEAD:

SWIVELLING ANGLE................................ 30 - 30 DEG.

TOTAL STROKE.................................... 11.6"

HANDWHEEL FEED STROKE........................... 6.3"

ADDITIONAL STROKE BY SLIDING ON SUB-SLIDE BASE.. 3.7"

AUTOMARIC RAPID FEED STROKE..................... 1.6"

HANDLEVER INFEED AMOUNT (INFINITELY VARIABLE)... 0 - 00138"

MOVEMENT PER TURN OF HANDWHEEL.................. 0.04"

MOVEMENT PER TURN OF GRADUATION................. 0.0001"

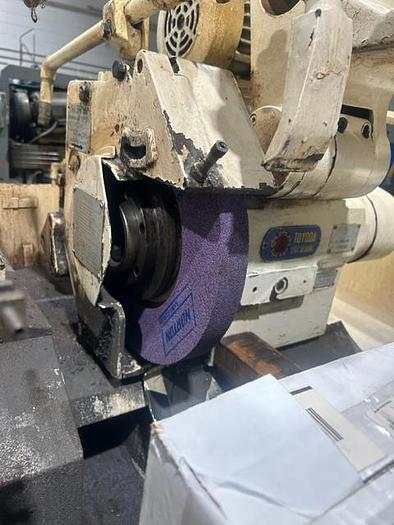

GRINDING WHEEL:

DIAMETER X WIDTH X HOLE......................... 14" X 2" X 5"

WHEEL SPEEDS.................................... 1650; 2150 RPM

TABLE:

SWIVELING ANGLE (TOWARD WHEEL - TOWARD OPERATOR) 10 - 3 DEG.

TRAVERSE SPEEDS (INFINITELY VARIABLE)........... 2 - 157 IPM

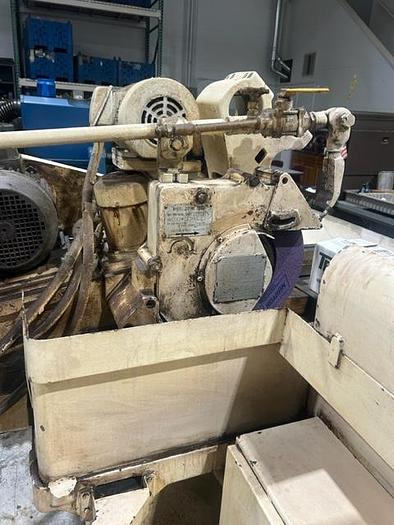

WORKHEAD:

SWIVELING ANGLE (TOWARD WHEEL - TOWARD OPERATOR) 90 - 30 DEG.

CENTER TAPER.................................... MT $4

SPINDLE HOLE DIAMTER............................ .78"

SPINDLE SPEEDS (INFINTELY VARIABLE)............. 20 - 300 RPM

FOOTSTOCK:

CENTER TAPER.................................... MT #4

MAX. RETRACTING STROKE OF CENTER................ 1"

ELECTRIC MOTORS:

FOR WHEELHEAD................................... 5HP

FOR WORKHEAD.................................... 1/2 HP

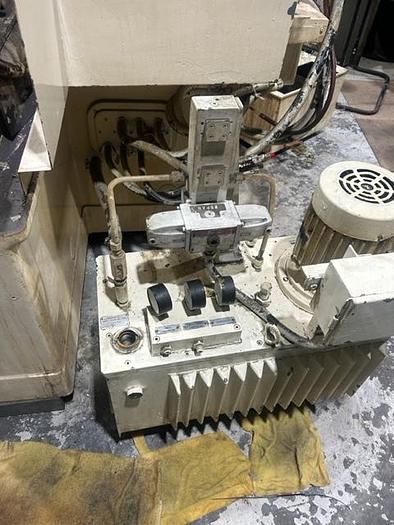

FOR HYDRAULIC PUMP.............................. 2 HP

FOR WHEEL SPINDLE BEARINGS PUMP................. 1/3 HP

FOR COOLANT PUMP................................ 1/3 HP

FOR INTERNAL GRINDING ATTACHMENT................ 1 HP

TANK CAPACITY:

FOR HYDRAULIC MECHANISM......................... 65 GAL.

FOR WHEEL SPINDLE BEARINGS LUBRICATION.......... 9 GAL.

FOR COOLANT..................................... 100 GAL.

APPROX. MACHINE DIMENSIONS...................... 180" X 83" X 57"

APPROX. MACHINE WEIGHT.......................... 6800 LBS

EQUIPPED WITH:

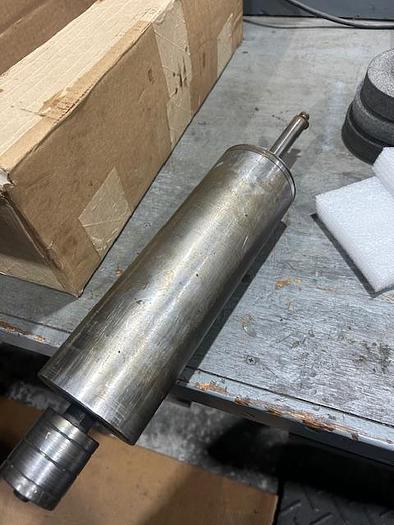

INTERNAL GRINDING SPINDLE

6" 3-JAW KITAGAWA CHUCK

COMBINATION LIVE / DEAD WORK HEAD

VARIABLE SPEED DRIVE

PLUNGE GRINDING

COOLANT SYSTEM

HYDRAULIC TANK

GAURDING

SPECIFICATIONS SUBJECT TO VERIFICATION

EQUIPPED WITH:

Coolant System

Internal Grinding Spindle

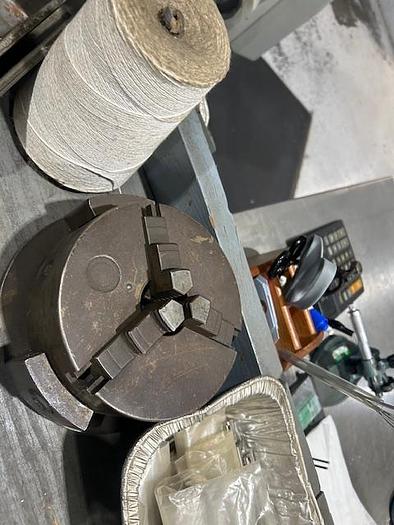

6" Three Jaw Kitagawa Chuck

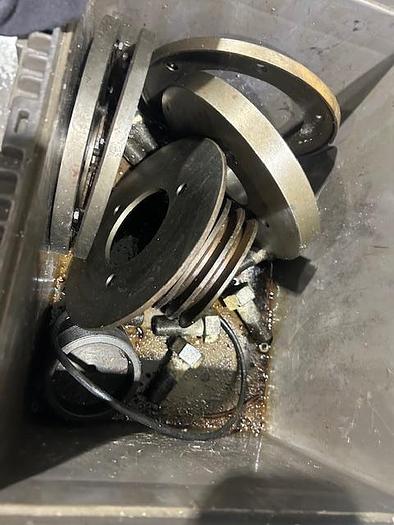

Face Plate

Dresser

Wheel Hub

Price 9,500.00

Sounds excellent & accurate.
